Same model may have multiple batches, images only for reference.

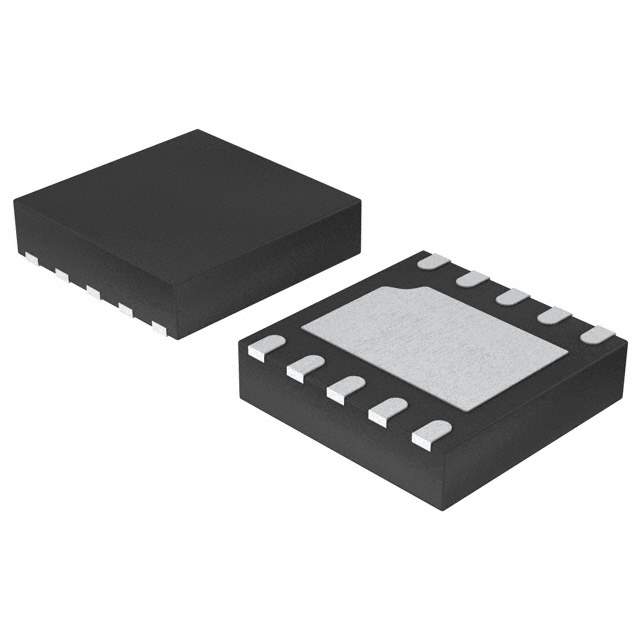

SC805AMLTRT Real Image
Same model may have multiple batches, images only for reference.

SC805AMLTRT

Part No SC805AMLTRT
Manufacturer Semtech Corporation
Catalog PMIC - Battery Chargers
Description IC LI-ION BATTERY CHRGR
Datasheet
SC805AMLTRT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Battery Chemistry Multi-Chemistry
Number of Cells 1
Current - Charging Constant - Programmable
Programmable Features Current, Timer
Fault Protection Over Current, Over Temperature
Charge Current - Max 1A
Battery Pack Voltage 4.2V
Maximum Supply Voltage 5.9V
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-MLPD (3x3)
Win Source Part Number 028153-SC805AMLTRT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name SC805A
Introduction Date March 02, 2007
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian SC805AMLTRT CAD Model

Description

The Semtech Corporation SC805A is a battery charger controller IC designed for constant programmable charging current and timer programmable features. It provides fault protection for over current and over temperature.

  • Battery Chemistry: multi-chemistry and has 1 cell
  • Maximum Charge Current: 1A
  • Battery Pack Voltage: 4.2V
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Case/Package: 10-MLPD (3x3)
  • Maximum Supply Voltage: 5.9V
  • Estimated EOL date: 2023
  • Halogen Free: compliant
  • Popularity: high popularity of 68 pct. in the open market
  • Supply and Demand Status: balanced
