Same model may have multiple batches, images only for reference.

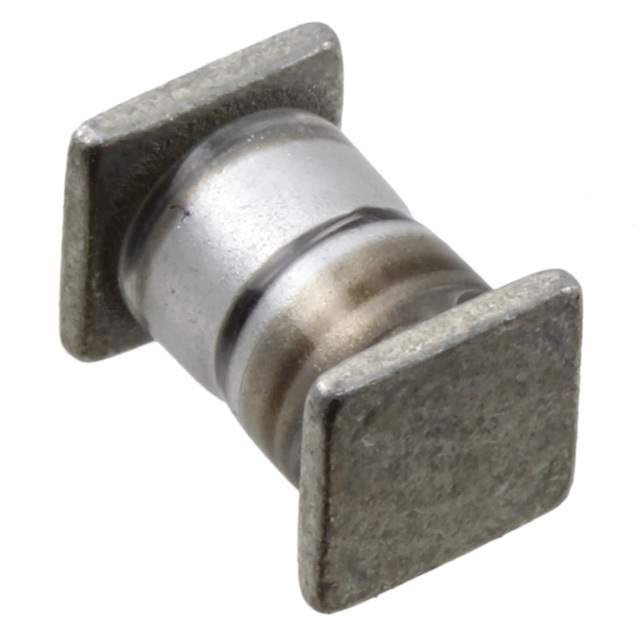

1N6126US Real Image
Same model may have multiple batches, images only for reference.

1N6126US

Part No 1N6126US
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 51.7VWM 98VC / 98V Clamp 5.1A Ipp Tvs Diode Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Semtech Corporation
Package Bulk
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 51.7V (Max)
Voltage - Breakdown (Min) 61.2V
Voltage - Clamping (Max) @ Ipp 98V
Current - Peak Pulse (10/1000µs) 5.1A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Mounting SMD (SMT)
Package / Case SQ-MELF
Base Product Number 1N6126
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 1
Win Source Part Number 1025178-1N6126US
Ultra Librarian 3D Model Ultra Librarian 1N6126US CAD Model

Description

The 1025178-1N6126US is a Zener diode designed for general-purpose applications.

  • Package: Bulk
  • Mounting: SMD (SMT)
  • Maximum Reverse Standoff Voltage: 51.7V
  • Minimum Breakdown Voltage: 61.2V
  • Clamping Voltage @ Ipp: 98V
  • Peak Pulse Power: 500W
  • Capacitance @ Frequency: -
  • Peak Pulse Current: 5.1A
  • Package/Case: SQ-MELF
  • Device Supplier Package: Not Specified
  • Operating Temperature Range: Not Specified
  • Alternative Parts Cross-References: 1N6126AUS, SACB5.0, SA48CA-E3/54, SA51A-E3/54, and SAC5.0-E3/54.10.0080
  • Manufacturer: Semtech Corporation
  • Base Product Number: 1N6126
