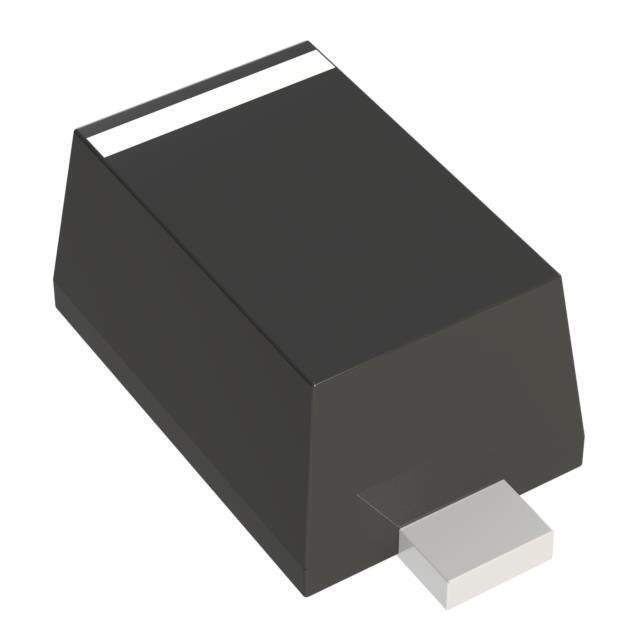

Same model may have multiple batches, images only for reference.
ESDULC5V0D5B-TP Micro Commercial Co – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ESDULC5V0D5B-TP

Part No ESDULC5V0D5B-TP
Manufacturer Micro Commercial Co
Catalog TVS - Diodes
Description ESD,5V,SOD-523
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR)
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 12V
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power - Peak Pulse 24W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.2pF @ 1MHz
Operating Temperature -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
Ultra Librarian 3D Model Ultra Librarian ESDULC5V0D5B-TP CAD Model
