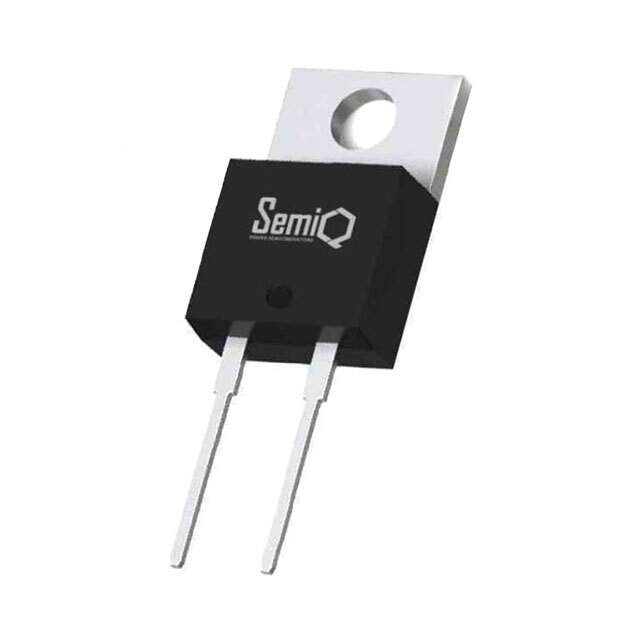

GP3D006A065A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr SemiQ
Series Amp+™
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 20A (DC)
Voltage - Forward (Vf) (Max) @ If 1.55 V @ 6 A
Speed No Recovery Time > 500mA (Io)
Current - Reverse Leakage @ Vr 15 µA @ 650 V
Capacitance @ Vr, F 229pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220-2L
Operating Temperature - Junction -55°C ~ 175°C
Base Product Number GP3D006
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 50
Win Source Part Number 1060972-GP3D006A065A
Ultra Librarian 3D Model Ultra Librarian GP3D006A065A CAD Model

Description

The Amp+™ series silicon carbide Schottky diode is a high-performance rectifier with an outstanding reverse recovery time of more than 500mA.

  • Maximum DC Reverse Voltage: 650V
  • Average Rectified Current: 20A
  • Forward Voltage: 1.55V @ 6A
  • Reverse Leakage Current: 15μA @ 650V
  • Capacitance: 229pF @ 1V and 1MHz
  • Operating Temperature Range: -55°C to 175°C
  • Package Type: TO-220-2
  • Supplier Device Package: TO-220-2L
  • Package Quantity: 50 diodes
