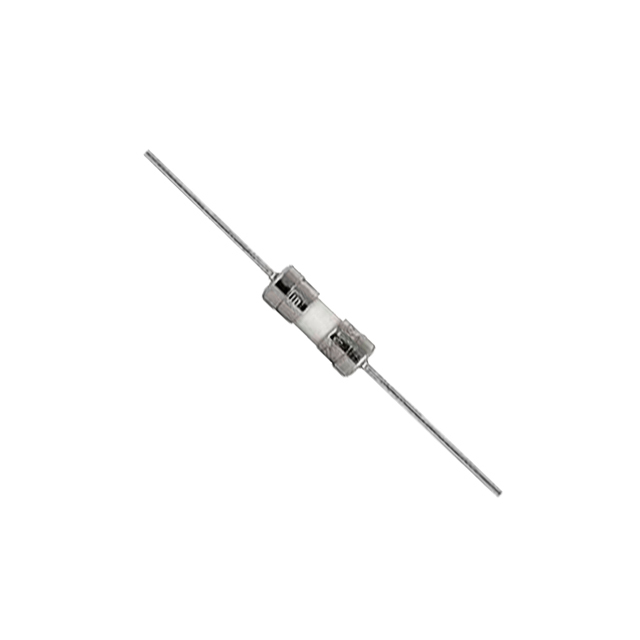

Same model may have multiple batches, images only for reference.
8020.5073.PT Schurter Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

8020.5073.PT

Part No 8020.5073.PT
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE CERM 3.15A 500VAC 3AB 3AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 3.15 A
Voltage Rating - AC 500 V
Voltage Rating - DC 400 V
Response Time Fast Blow
Case / Package 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 8.6
Approval Agency cURus
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.270\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1603617-8020.5073.PT
Ultra Librarian 3D Model Ultra Librarian 8020.5073.PT CAD Model
