Same model may have multiple batches, images only for reference.

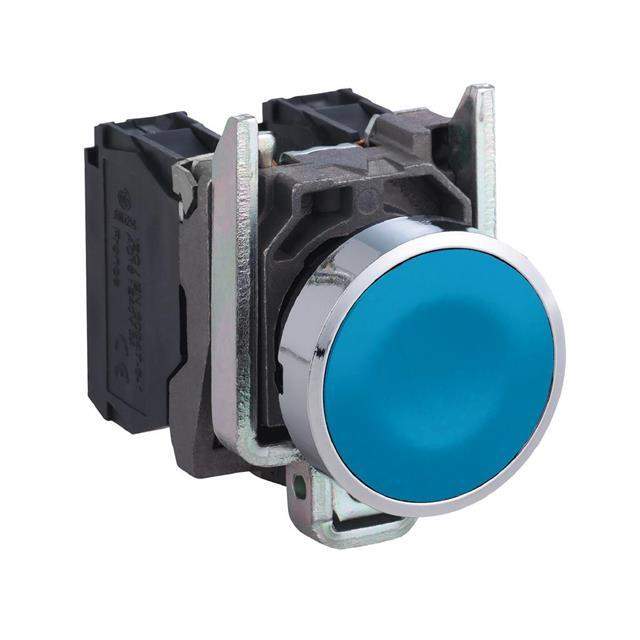

XB4BA61 Real Image
Same model may have multiple batches, images only for reference.

XB4BA61

Part No XB4BA61
Manufacturer Schneider Electric
Catalog Pushbutton Switches
Description HARMONY XB4, PUSH BUTTON, METAL, / Pushbutton Switch SPST-NO Standard Panel Mount, Front
Datasheet
XB4BA61 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr Schneider Electric
Series Harmony XB4
Package Box
Mounting Type Panel Mount, Front
Type Standard
Circuit SPST-NO
Switch Function On-Off
Current Rating (Amps) 6A (AC), 550mA (DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 125 V
Actuator Type Round, Button, Flush
Color - Actuator/Cap Blue
Termination Style Screw Terminal
Ingress Protection IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof
Panel Cutout Dimensions Circular - 22.00mm Dia
Temperature Range - Operating -40°C ~ 70°C
Mechanical Life 10,000,000 Cycles
Electrical Life 1,000,000 Cycles
MSL Level 1 (Unlimited)
Other Names 4008-XB4BA61
Standard Package 1
Win Source Part Number 1137397-XB4BA61
Ultra Librarian 3D Model Ultra Librarian XB4BA61 CAD Model

Description

The Schneider Electric Harmony XB4 XB4BA61 is a pushbutton switch that comes in a circular shape with a 22.00mm diameter panel cutout. The Schneider Electric Harmony XB4 XB4BA61 is manufactured by Schneider Electric.

  • Shape: Circular
  • Panel Cutout Diameter: 22.00mm
  • Circuit: SPST-NO
  • Switch Function: On-Off
  • Actuator Type: Round, Button, Flush
  • Actuator/Cap Color: Blue
  • Mechanical Life: 10,000,000 cycles
  • Electrical Life: 1,000,000 cycles
  • Voltage Rating (AC): 120V
  • Voltage Rating (DC): 125V
  • Current Rating (AC): 6A (AC)
  • Current Rating (DC): 550mA (DC)
  • Temperature Range: -40°C to 70°C
  • MSL Level: 1 (Unlimited)
  • Package: Box
