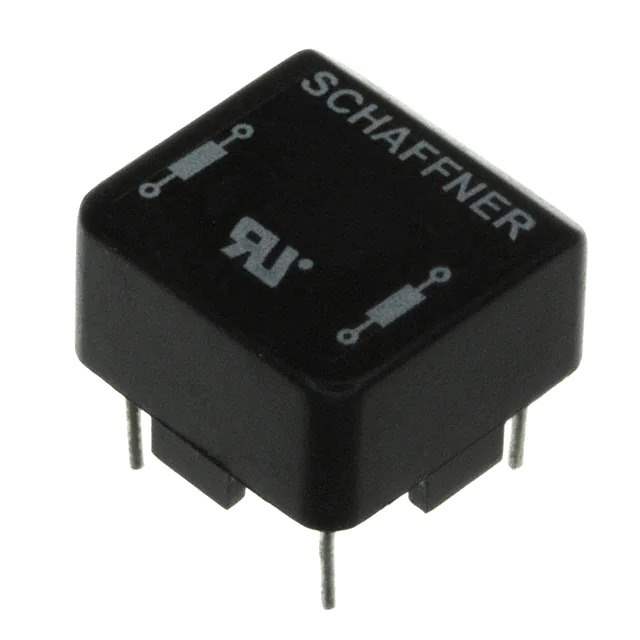

RN102-2-02-1M1 Real Image
Same model may have multiple batches, images only for reference.

RN102-2-02-1M1

Part No RN102-2-02-1M1
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 1.1MH 2A 2LN TH
Datasheet
RN102-2-02-1M1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tube
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.1 mH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 70mOhm (Typ)
Voltage Rating - AC 300V
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Size / Dimension 0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Max) 0.366" (9.30mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number RN102
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
California Prop 65 Warning Information
Win Source Part Number 848831-RN102-2-02-1M1
Ultra Librarian 3D Model Ultra Librarian RN102-2-02-1M1 CAD Model

Description

The RN102-2-02-1M1 is a common mode choke filter from Schaffner EMC Inc.

  • Category: Filters - Common Mode Chokes
  • Package: Tube
  • Standard Package: 40 Pieces
  • Status: Active
  • Voltage Rating: 300V
  • Current Rating: 2A
  • Mounting Type: Through Hole
  • Package: Horizontal, 4 PC Pin
  • ECCN: EAR99
  • REACH: REACH Unaffected
  • Approvals: ENEC, UR, VDE
