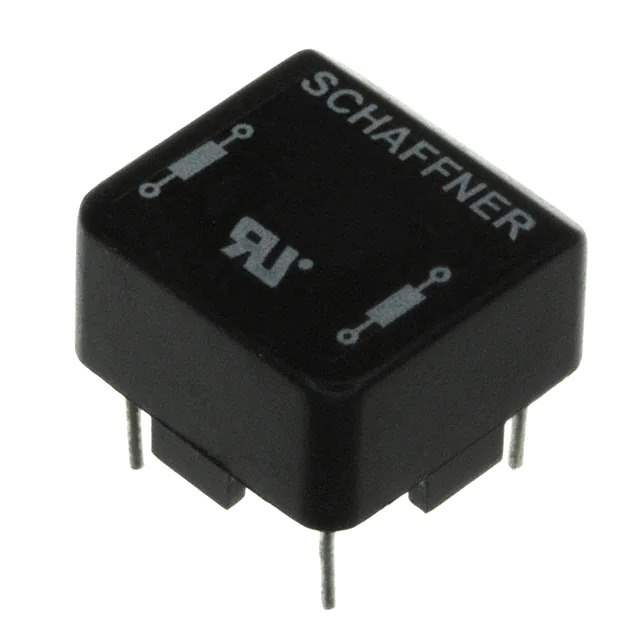

RN102-0.3-02 Real Image
Same model may have multiple batches, images only for reference.

RN102-0.3-02

Part No RN102-0.3-02
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 12MH 300MA 2LN TH
Datasheet
RN102-0.3-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RN
Package Tray
Product Status Obsolete
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 12 mH @ 1 kHz
Current Rating (Max) 300mA (Typ)
DC Resistance (DCR) (Max) 1.275Ohm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency UR, VDE
Mounting Type Through Hole
Size / Dimension 0.551" L x 0.551" W (14.00mm x 14.00mm)
Height (Max) 0.366" (9.30mm)
Package / Case Horizontal, 4 PC Pin
Standard Package 40 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 848623-RN102-0.3-02
Ultra Librarian 3D Model Ultra Librarian RN102-0.3-02 CAD Model

Description

The RN102-0.3-02 is a Common Mode Choke filter manufactured by Schaffner EMC Inc.

  • Category: Filters - Common Mode Chokes
  • Series: RN
  • Voltage Rating: 250V
  • Current Rating: 300mA
  • Size: 0.551" L x 0.551" W (14.00mm x 14.00mm)
  • Height: 0.366" (9.30mm)
  • Mounting Type: Through-Hole
  • Package: Horizontal, 4 PC Pin
  • Operating Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.50.8000
  • Product Status: No Longer Actively Produced
