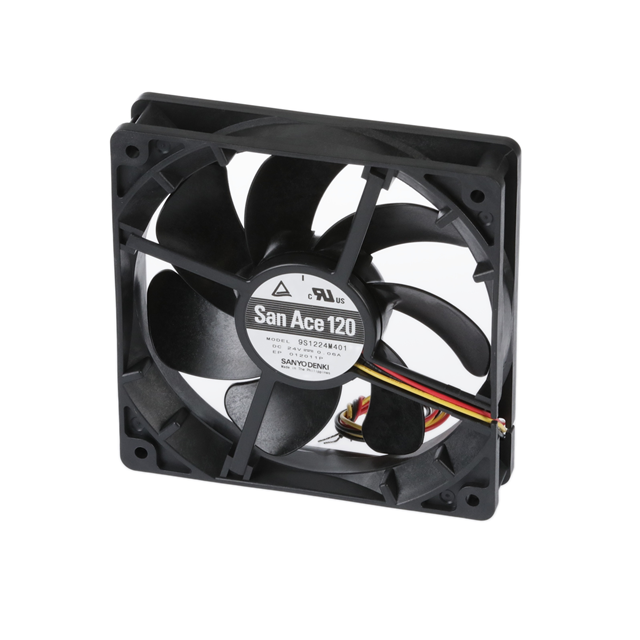

9S1224M401

Part No 9S1224M401
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 120X25MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 58.6 CFM (1.64m³/min) 3 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 120
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 120mm L x 120mm H
Width 25.00mm
Air Flow 58.6 CFM (1.64m³/min)
Static Pressure 0.090 in H2O (22.4 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 24.0dB(A)
Power (Watts) 1.44 W
RPM 1850 RPM
Termination 3 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.309 lb (140.16 g)
Current Rating (Amps) 0.060A
Voltage Range 14 ~ 26.4VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9S1224
Standard Package 30
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1349710-9S1224M401
Ultra Librarian 3D Model Ultra Librarian 9S1224M401 CAD Model

Description

The San Ace 120 series DC brushless fan is a high-performance fan that is perfect for thermal management applications.

  • Voltage - Rated: 24VDC
  • Power (Watts): 1.44W
  • Air Flow: 58.6 CFM
  • Static Pressure: 0.090 in H2O
  • Features: Locked Rotor Protection, Speed Sensor (Tach)
  • Termination: 3 Wire Leads
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Operating Temperature: 14 ~ 158°F
  • Lifespan @ Temp.: 40000 Hrs @ 60°C
  • Housing Material: Plastic
  • Inlet Side Ring: No
  • Overall Square Size: 120mm L x 120mm H
  • Packaging: Box
  • Weight: 0.309 lb (140.16 g)
  • Approval Agency: CSA, TUV, UL
  • ECCN: EAR99
