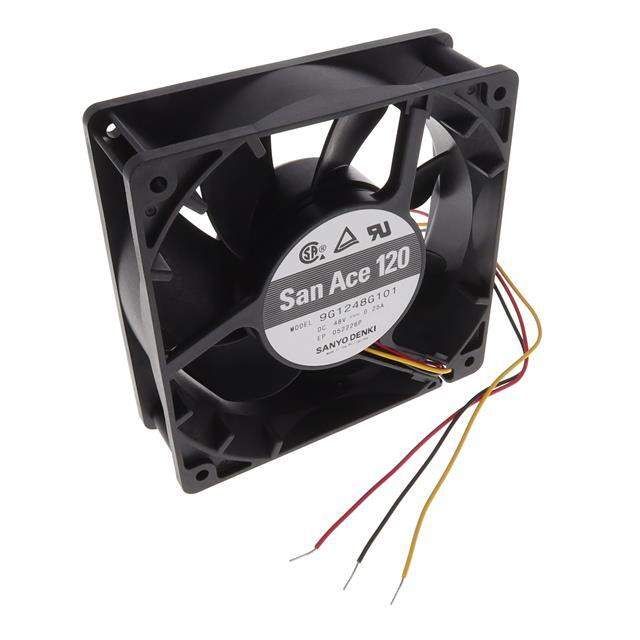

9G1248G101 Real Image
Same model may have multiple batches, images only for reference.

9G1248G101

Part No 9G1248G101
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 119X38MM 48VDC WIRE / Fan Tubeaxial 48VDC Square - 119mm L x 119mm H Ball 137.0 CFM (3.84m³/min) 3 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 120
Package Box
Voltage - Rated 48VDC
Size / Dimension Square - 119mm L x 119mm H
Width 38.00mm
Air Flow 137.0 CFM (3.84m³/min)
Static Pressure 0.542 in H2O (135.0 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Speed Sensor (Tach)
Noise 49.0dB(A)
Power (Watts) 12 W
RPM 3600 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.728 lb (330.22 g)
Current Rating (Amps) 0.250A
Voltage Range 40.8 ~ 55.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9G1248
Standard Package 21
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1342080-9G1248G101
Ultra Librarian 3D Model Ultra Librarian 9G1248G101 CAD Model

Description

The San Ace 120 series DC brushless fan is a high-performance fan that is perfect for thermal management applications.

  • Voltage Rating: 48VDC
  • Power Consumption: 12W
  • Air Flow: 137.0 CFM
  • Static Pressure: 0.542 in H2O
  • Features: Speed Sensor (Tach)
  • Termination: 3 Wire Leads
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Operating Temperature: -4 ~ 158°F
  • Lifetime @ Temp.: 40000 Hrs @ 60°C
  • Square Size: 119mm L x 119mm H
  • Package: Box
  • Weight: 0.728 lb (330.22 g)
  • Approvals: CSA, TUV, UL
  • ECCN: EAR99
