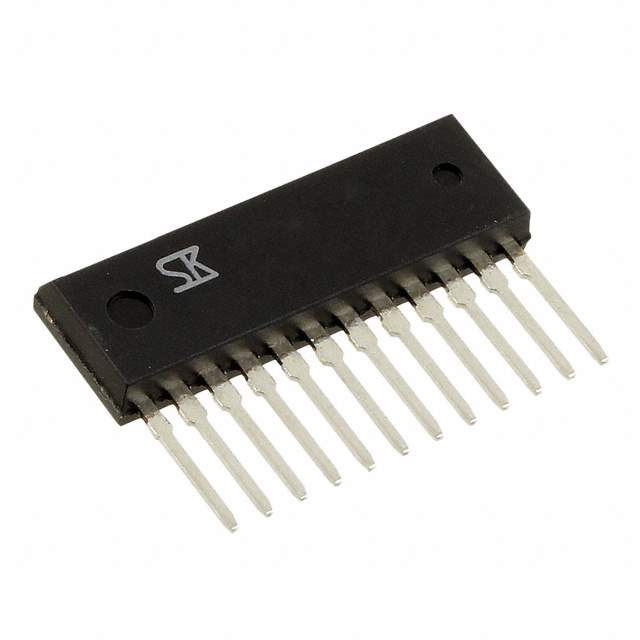

SMA5106 Real Image
Same model may have multiple batches, images only for reference.

SMA5106

Part No SMA5106
Manufacturer Sanken
Catalog Transistors (BJT) - Arrays
Description TRANS 4NPN DARL 120V 5A
Datasheet
SMA5106 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Tube/Rail
Status Active
Transistor Polarity 4 NPN Darlington (Quad)
Maximum Current Collector 5A
VCEO Maximum Collector-Emitter Breakdown Voltage 120V
Max Vce (sat) 1.5V @ 3mA, 3A
Collector Cut-off Current(Max) 10μA (ICBO)
Typical Gain (hFE) (Min) 2000 @ 3A, 2V
Maximum Power Dissipation 5W
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package 12-SIP
Win Source Part Number 046982-SMA5106
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMA5106 CAD Model

Description

The Sanken SMA5106 is a discrete semiconductor product that is commonly used in electronic applications.

  • Transistor Type: 4 NPN Darlington
  • Transistor Polarity: Quad
  • Maximum Collector-Emitter Breakdown Voltage: 120V
  • Maximum Current Collector: 5A
  • Collector Cut-off Current: 10μA (ICBO)
  • Typical Gain (hFE): 2000 @ 3A, 2V
  • Maximum Power Dissipation: 5W
