Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Sanken
Package Tube
Product Status Obsolete
Motor Type - AC, DC Brushless DC (BLDC)
Function Driver
Output Configuration Half Bridge (3)
Interface Logic
Technology IGBT
Applications Home Appliance
Current - Output 15A
Voltage - Supply 13.5V ~ 16.5V
Voltage - Load 600V (Max)
Temperature Range - Operating 125°C (TJ)
Mounting Type Through Hole
Package / Case 33-PowerDIP (1.307", 33.20mm) Exposed Pad
Supplier Device Package 33-PowerDIP LF2552
Base Product Number SCM1243
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 893851-SCM1243MF
Ultra Librarian 3D Model Ultra Librarian SCM1243MF CAD Model

Description

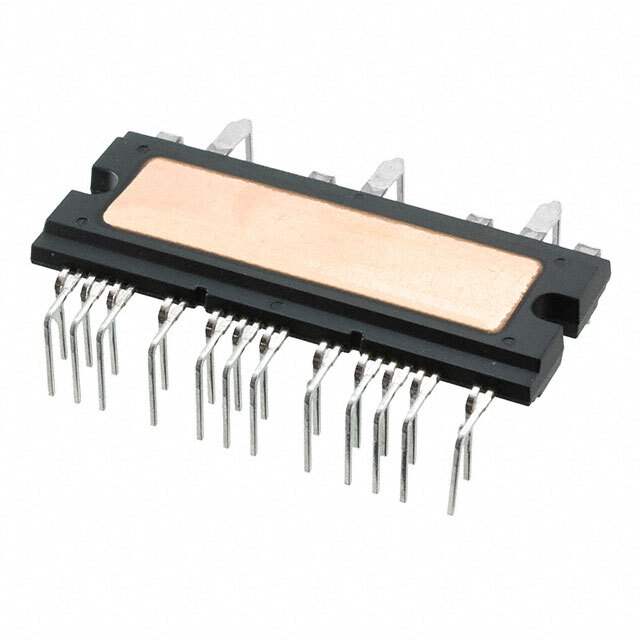

The SCM1243MF is an integrated circuit (IC) motor driver specifically designed for home appliance applications.

  • Function: Motor Driver
  • Application: Home Appliance
  • Type: Power Management (PMIC)
  • Motor Type: Brushless DC (BLDC)
  • Output Voltage (Max): 600V
  • Output Configuration: Half Bridge
  • Output Current: 15A
  • Technology: IGBT
  • Mounting Type: Through Hole
  • Package: 33-PowerDIP with exposed pad
  • Operating Temperature (TJ): Up to 125°C
  • Supply Voltage: 13.5V to 16.5V
  • Manufacturer: Sanken
  • Product Status: Obsolete
