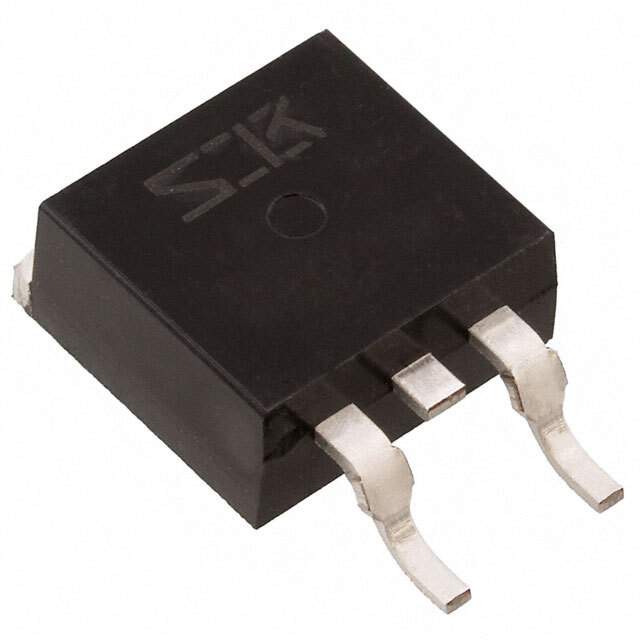

Same model may have multiple batches, images only for reference.

2SK3710

Name: 2SK3710
Brand: Sanken
SKU: 967075
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	2SK3710
Manufacturer	Sanken
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 60V 85A TO220S / N-Channel 60 V 85A (Ta) 100W (Tc) Surface Mount TO-220S
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Sanken
Package	Bulk
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	85A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	6mOhm @ 35A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8400 pF @ 10 V
Power Dissipation (Max)	100W (Tc)
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	TO-220S
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	2SK3710 DK
Standard Package	1,000
Win Source Part Number	967075-2SK3710
Ultra Librarian 3D Model	Ultra Librarian 2SK3710 CAD Model

Alternative Products

Description

The MOSFET transistor from Sanken is an N-channel FET type with a drain to source voltage (Vdss) of 60V and a continuous drain current (Id) of 85A (Ta) at 25°C.

Drain to Source Voltage (Vdss): 60V
Continuous Drain Current (Id): 85A (Ta) @ 25°C
Rds On (Max) @ Id, Vgs: 6mOhm @ 35A, 10V
Vgs(th) (Max) @ Id: 4V @ 1mA
Power Dissipation (Max): 100W (Tc)
Input Capacitance (Ciss) (Max) @ Vds: 8400 pF @ 10 V
Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Mounting Technology: SMD (SMT)
Operating Temperature Range: 150°C (TJ)
Alternative: 2SK37102SK3710 DK
