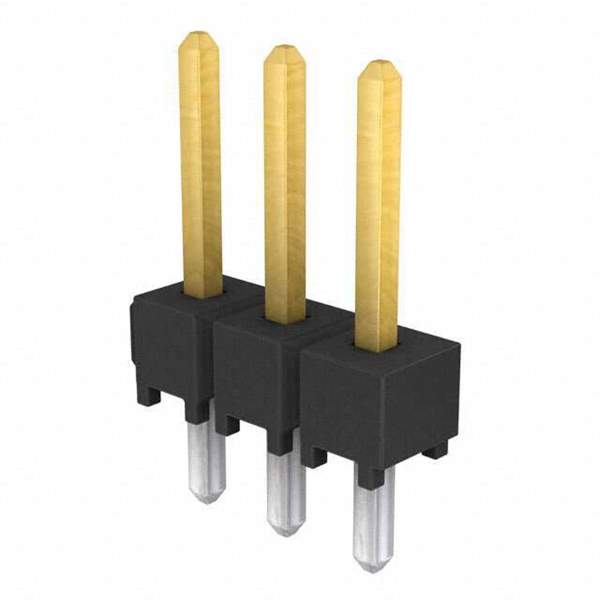

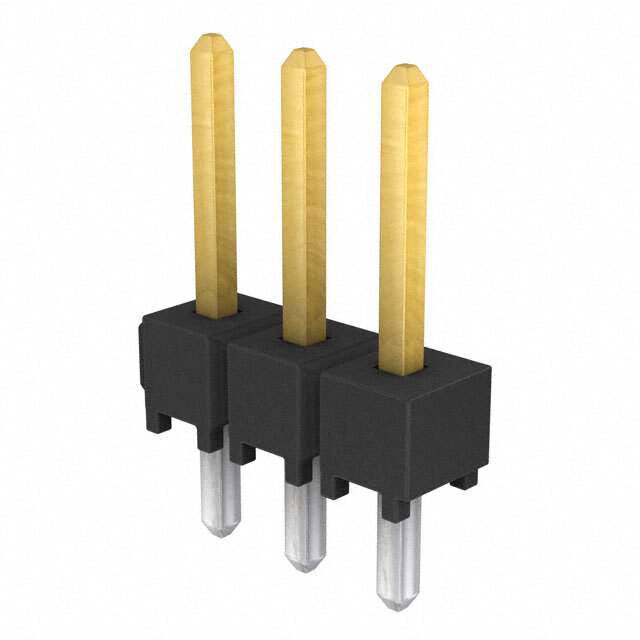

TSW-108-07-L-D

Name: TSW-108-07-L-D
Brand: Samtec Inc.
SKU: WS1307225
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSW-108-07-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2.54MM
Datasheet	TSW-108-07-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1307225-TSW-108-07-L-D
Category	Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Mfr	Samtec Inc.
Packaging	Bulk
Part Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Row Spacing - Mating	0.100" (2.54mm)
Style	Board to Board or Cable
Ultra Librarian 3D Model	Ultra Librarian TSW-108-07-L-D CAD Model

Description

Insulator Material:
TSW: PBT
HTSW: Natural LCP
Terminal Material: Phosphor Bronze
Plating: Au or Sn over 50 µ" (1.27 µm) Ni
Operating Temp Range:
-55 °C to +125 °C with Gold
-55 °C to +105 °C with Tin
Voltage Rating:
550 VAC mated with SSW;
500 VAC mated with BCS;
515 VAC mated with ESQ;
450 VAC -RA/-RE mated with BCS or SSM;
400 VAC mated with CES
Lead–Free Solderable:
HTSW: Yes
TSW: No, Lead Wave Only
