Same model may have multiple batches, images only for reference.

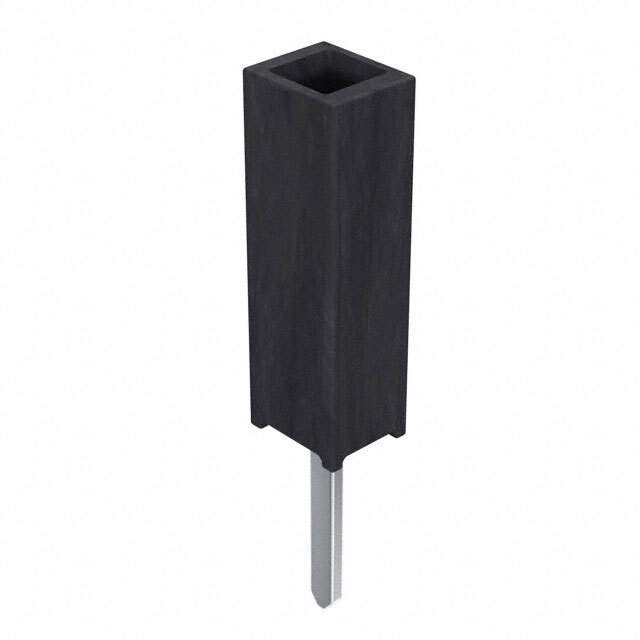

SSW-101-02-T-S Real Image
Same model may have multiple batches, images only for reference.

SSW-101-02-T-S

Part No SSW-101-02-T-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSW-101-02-T-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSW
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 1
Number of Positions Loaded All
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.194" (4.93mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSW-101
Other Names SAM1222-01
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1288386-SSW-101-02-T-S
Ultra Librarian 3D Model Ultra Librarian SSW-101-02-T-S CAD Model

Description

The Samtec Inc. SSW-101-02-T-S is a single position receptacle connector that is used for board to board or cable connections.

  • Contact Type: Forked
  • Material: Phosphor Bronze
  • Current Rating: 4.7A per contact
  • Temperature Range: -55°C to 105°C
  • Mounting: Through Hole
  • Insulation Color: Black
