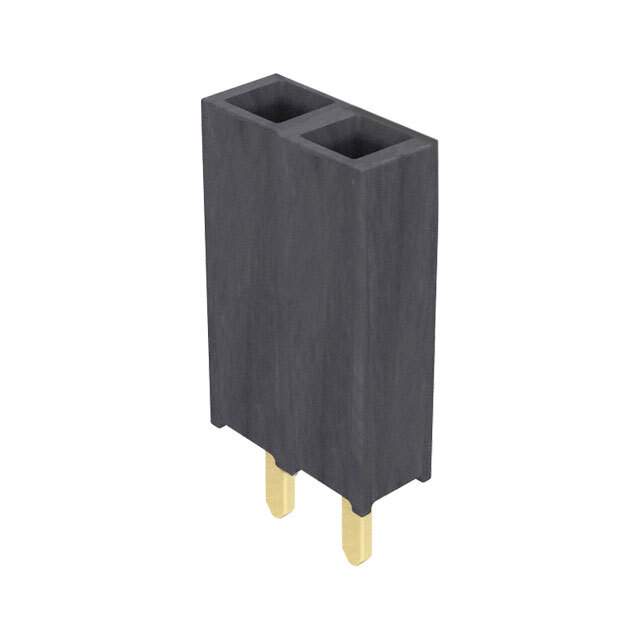

SSW-101-01-G-D Real Image
Same model may have multiple batches, images only for reference.

SSW-101-01-G-D

Part No SSW-101-01-G-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSW-101-01-G-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSW
Package Bulk,Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 2
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.104" (2.64mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Current Rating (Amps) 4.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSW-101
Other Names SAM1208-01
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1288923-SSW-101-01-G-D
Ultra Librarian 3D Model Ultra Librarian SSW-101-01-G-D CAD Model

Description

The SSW series of connectors from Samtec Inc. is a range of rectangular connectors that feature a receptacle connector type and forked contact type.

  • Model: SSW-101-01-G-D
  • Positions: 2
  • Positions Loaded: All
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Current Rating per Contact: 4.7A
  • Contact Finish (Mating): Gold
  • Contact Finish Thickness (Mating): 20.0µin (0.51µm)
  • Contact Finish (Post): Gold
  • Contact Finish Thickness (Post): 3.00µin (0.076µm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Height: 0.335" (8.51mm)
  • Mounting: Through-Hole
  • Rows: Two
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Style: Board-to-board or cable
  • Package: Bulk
