Same model may have multiple batches, images only for reference.

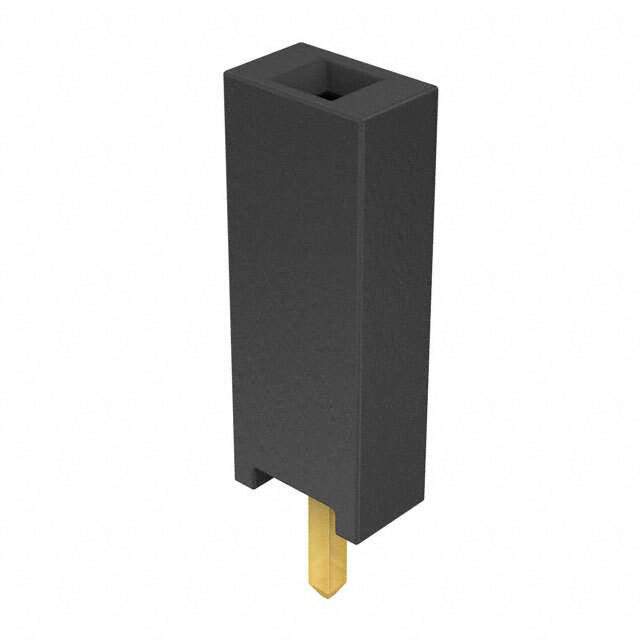

SSQ-101-01-G-S Real Image
Same model may have multiple batches, images only for reference.

SSQ-101-01-G-S

Part No SSQ-101-01-G-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSQ-101-01-G-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSQ
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 1
Number of Positions Loaded All
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.104" (2.64mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Voltage Rating 465VAC, 655VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSQ-101
Other Names SAM1180-01
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1289118-SSQ-101-01-G-S
Ultra Librarian 3D Model Ultra Librarian SSQ-101-01-G-S CAD Model

Description

The SSQ-101-01-G-S is a 1-position receptacle connector manufactured by Samtec Inc.

  • Contact Type: Forked
  • Application: Board-to-board or cable applications
  • Packaging: Bulk
  • Contact Finish: Gold
  • Voltage Rating: 465 VAC and 655 VDC
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Suitable for: Telecommunications equipment, medical devices, and industrial control systems
