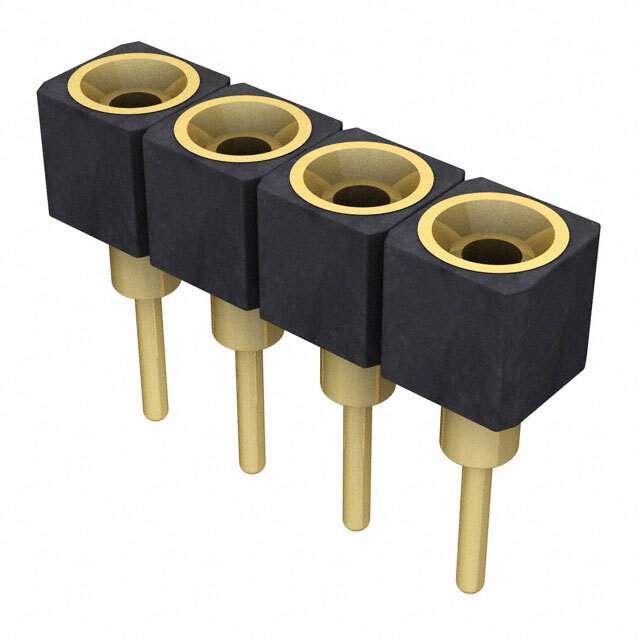

SS-104-G-2 Real Image
Same model may have multiple batches, images only for reference.

SS-104-G-2

Part No SS-104-G-2
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 4POS 0.1 GOLD PCB / 4 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
SS-104-G-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SS
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.100" (2.54mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Gold
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Circular
Contact Material Beryllium Copper
Contact Finish Thickness - Post 10.0µin (0.25µm)
Base Product Number SS-104
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1115-04
Standard Package 1
Win Source Part Number 1095998-SS-104-G-2
Ultra Librarian 3D Model Ultra Librarian SS-104-G-2 CAD Model

Description

The SS series SS-104-G-2 is a 4-position, 1-row, receptacle connector with a push-pull fastening type.

  • Contact Shape: Circular
  • Contact Material: Beryllium copper
  • Voltage Rating: Unspecified
  • Insulation Material: Polybutylene terephthalate (PBT), glass-filled
  • Contact Finish (Mating): Gold with a thickness of 30.0µin (0.76µm)
  • Contact Finish (Post): Gold with a thickness of 10.0µin (0.25µm)
  • Mounting Type: Through hole
  • Contact Length (Post): 0.125" (3.18mm)
  • Insulation Height: 0.100" (2.54mm)
  • Row Spacing of Mating: Unspecified
