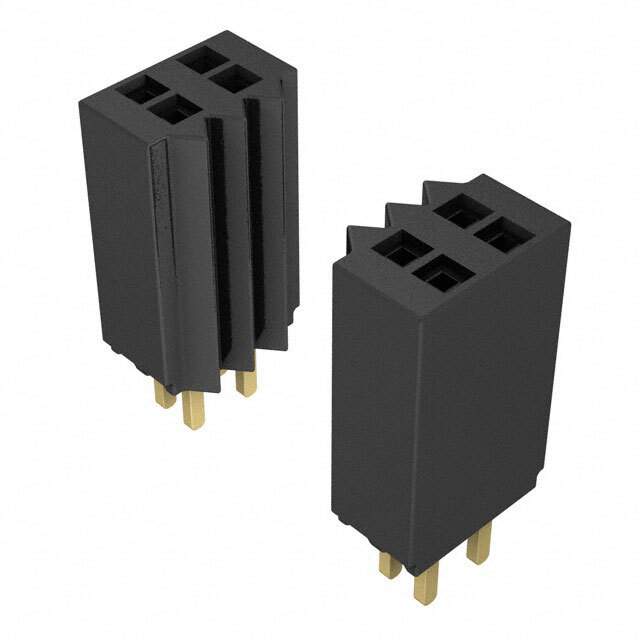

SMS-113-01-G-D

Name: SMS-113-01-G-D
Brand: Samtec Inc.
SKU: 515401
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SMS-113-01-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SOCKET STRIP 1.27MM 26POS
Datasheet	SMS-113-01-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Tube/Rail
Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	26
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.100" (2.54mm)
Temperature Range - Operating	-55°C to 125°C
Contact Finish - Post	Gold
Current Rating	5A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Finish Thickness - Post	3μin (0.08μm)
Win Source Part Number	1098627-SMS-113-01-G-D
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian SMS-113-01-G-D CAD Model

Description

The SMS-113-01-G-D is a 26-position, board-to-board interconnect from Samtec Inc.

Positions: 26
Type: Board-to-Board Interconnect
Fastening Type: Push-Pull
Mounting Style: Through-Hole
Pitch-Mating: 0.050” (1.27mm)
Row Spacing: 0.100” (2.54mm)
Voltage Rating: -
Current Rating: 5A per contact
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Contact Finish-Mating: Gold
Contact Finish-Post: Gold
Status: Active
Popularity: Medium
Supply and Demand Status: Balanced
