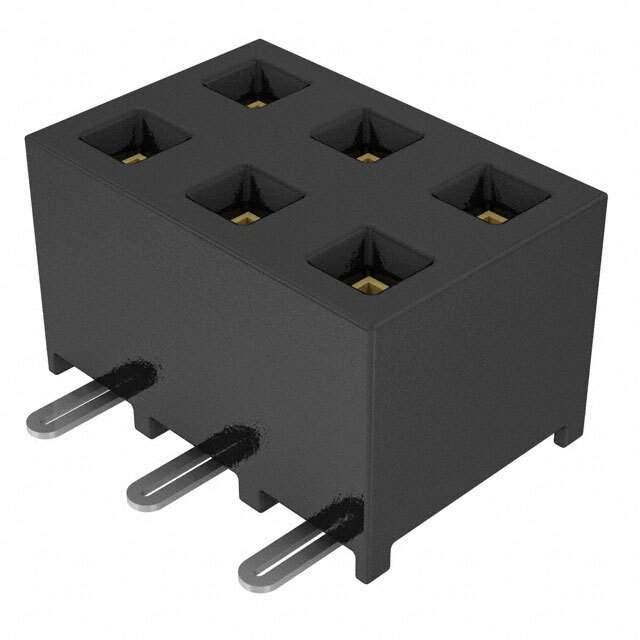

SMM-103-01-S-D

Name: SMM-103-01-S-D
Brand: Samtec Inc.
SKU: 1285379
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMM-103-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMM-103-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SMM
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.140" (3.56mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3.2A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SMM-103
Other Names	SAM11820,SMM-103-01-S-D
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285379-SMM-103-01-S-D
Ultra Librarian 3D Model	Ultra Librarian SMM-103-01-S-D CAD Model

Description

The SMM-103-01-S-D is a 6-position female socket rectangular connector from the Tiger Eye™ SMM series.

Connector Series: Tiger Eye™ SMM
Number of Positions: 6
Contact Type: Female Socket
Fastening Type: Push-Pull
Style: Board-to-Board or Cable
Contact Material: Beryllium Copper
Insulation Material: Liquid Crystal Polymer (LCP)
Voltage Rating: 350VAC
Current Rating: 3.2A per contact
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Post Contact Finish: Tin
Temperature Range: -55°C to 125°C
REACH Status: REACH Unaffected
