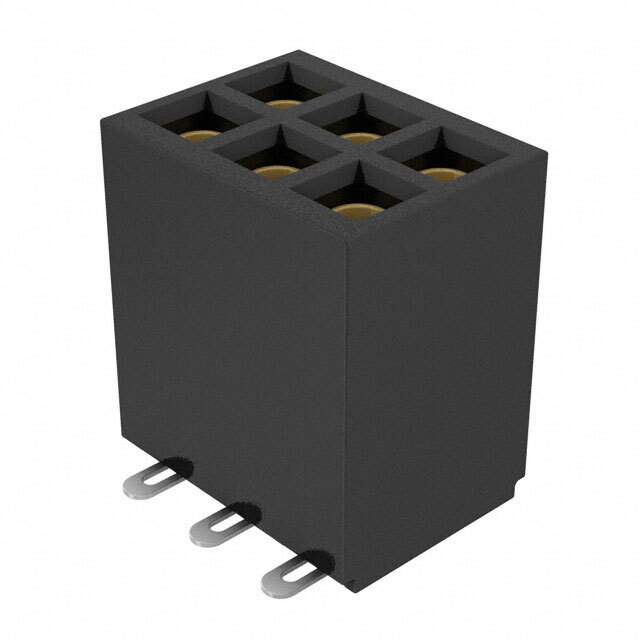

SFMC-103-L2-FM-D Real Image
Same model may have multiple batches, images only for reference.

SFMC-103-L2-FM-D

Part No SFMC-103-L2-FM-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMC-103-L2-FM-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMC
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2.9A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFMC-103
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1286722-SFMC-103-L2-FM-D
Ultra Librarian 3D Model Ultra Librarian SFMC-103-L2-FM-D CAD Model

Description

This Tiger Eye™ SFMC receptacle connector is a rectangular connector with 6 female socket contacts.

  • Positions: 6
  • Contact Type: Female Socket
  • Fastening Type: Push-Pull
  • Connection: Board to Board or Cable Style
  • Termination: Solder
  • Contact Material: Beryllium Copper
  • Pitch: 0.050" (1.27mm)
  • Mating Contact Finish: Gold
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • Contact Finish Post: Tin
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
  • Current Rating: 2.9A per contact
  • Mounting: SMD (SMT)
