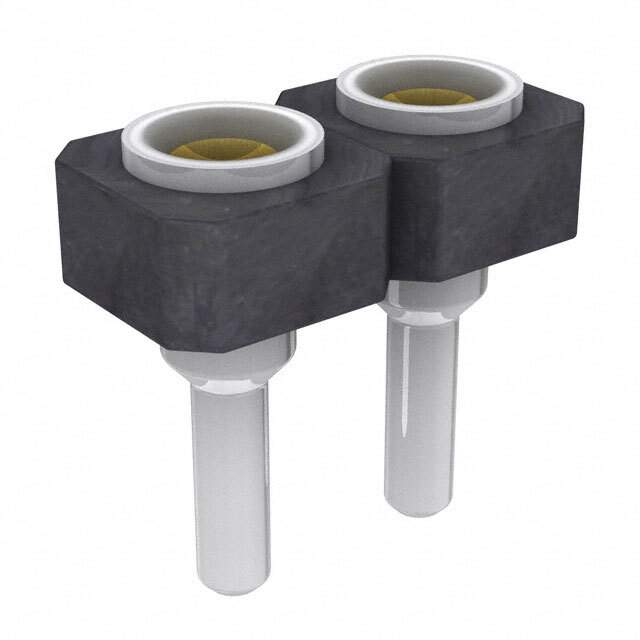

SDL-101-T-12 Real Image
Same model may have multiple batches, images only for reference.

SDL-101-T-12

Part No SDL-101-T-12
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-101-T-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 2
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.095" (2.41mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-101
Other Names SAM1138-01
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293012-SDL-101-T-12
Ultra Librarian 3D Model Ultra Librarian SDL-101-T-12 CAD Model

Description

The SDL series is a rectangular connector that comes with a receptacle and female socket contact type.

  • Positions: 2
  • Mounting Type: Through Hole
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Bulk
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Height: 0.095" (2.41mm)
  • Contact Length of Post: 0.095" (2.41mm)
  • RoHS: Non-Compliant
  • ECCN: EAR99
  • REACH: Unaffected
  • Manufacturer: Samtec Inc.
