Same model may have multiple batches, images only for reference.

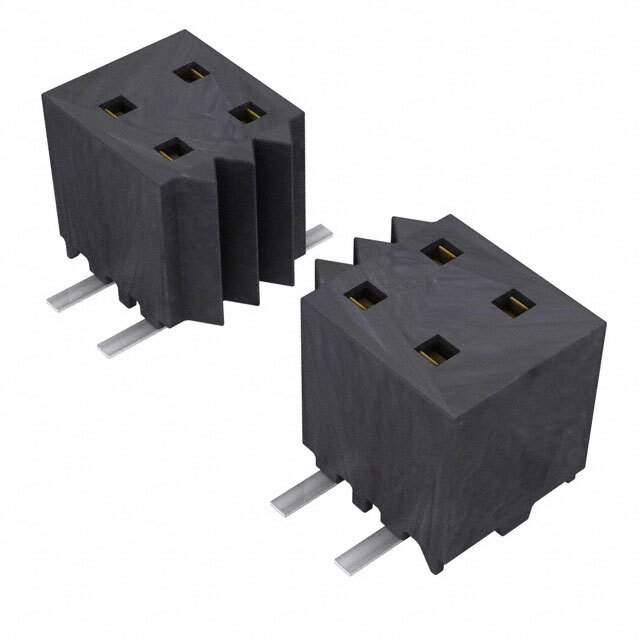

MMS-111-02-L-DV Real Image
Same model may have multiple batches, images only for reference.

MMS-111-02-L-DV

Part No MMS-111-02-L-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 22POS 0.079 GOLD SMD / 22 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet
MMS-111-02-L-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series MMS
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 22
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.177" (4.50mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Current Rating (Amps) 3.9A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number MMS-111
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1236-11
Standard Package 1
Win Source Part Number 1026335-MMS-111-02-L-DV
Ultra Librarian 3D Model Ultra Librarian MMS-111-02-L-DV CAD Model

Description

The MMS connector is a high-quality rectangular connector with 22 positions and a receptacle connector type.

  • Connector Type: Rectangular
  • Number of Positions: 22
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Mounting Type: SMD (SMT)
  • Pitch: 0.079" (2.00mm)
  • Contact Finish: Gold
  • Contact Finish Thickness - Mating: 10.0μin (0.25μm)
  • Contact Finish - Post: Tin
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Temperature Range: -55°C ~ 125°C
  • Manufacturer: Samtec Inc.
  • Packaging: Tube
  • Product: MMS connector
