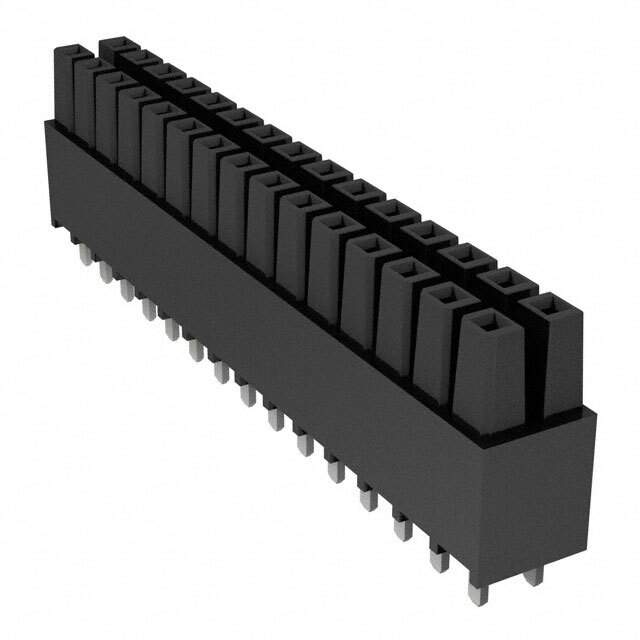

IPS1-115-01-S-D Real Image
Same model may have multiple batches, images only for reference.

IPS1-115-01-S-D

Part No IPS1-115-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 30POS 0.1 GOLD PCB / 30 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
IPS1-115-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Mini Mate® IPS1
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 30
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Voltage Rating 775VAC, 1095VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number IPS1-115
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM8091
Standard Package 1
Win Source Part Number 962178-IPS1-115-01-S-D
Ultra Librarian 3D Model Ultra Librarian IPS1-115-01-S-D CAD Model

Description

The Mini Mate® IPS1 series from Samtec Inc. is a board-to-board style, rectangular connector with a receptacle connector type and female socket contact type.

  • Series: Mini Mate® IPS1
  • Manufacturer: Samtec Inc.
  • Style: Board-to-Board
  • Shape: Rectangular
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Rows: 2
  • Pitch: 0.100" (2.54mm)
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Voltage Rating: 775VAC, 1095VDC
  • Contact Finish (Mating): Gold (30.0µin / 0.76µm)
  • Contact Finish (Post): Tin
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Contact Shape: Square
  • Contact Length (Post): 0.100" (2.54mm)
  • Operating Temperature: -55°C to 125°C
