Same model may have multiple batches, images only for reference.

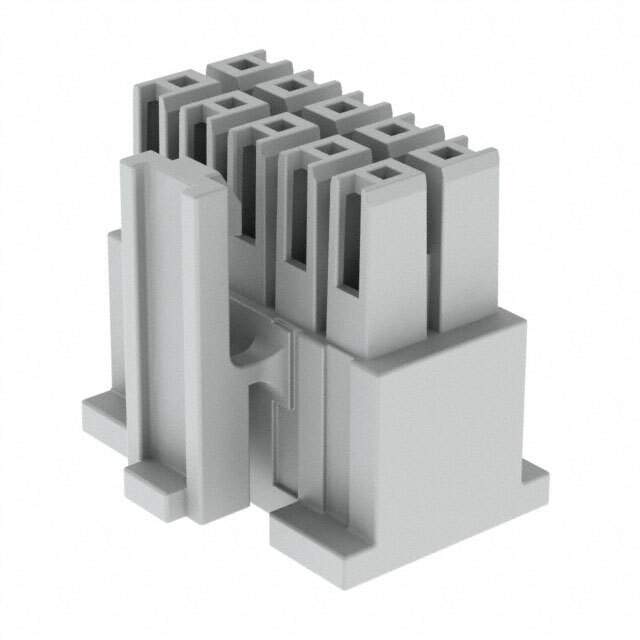

IPD1-05-D-K Real Image
Same model may have multiple batches, images only for reference.

IPD1-05-D-K

Part No IPD1-05-D-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description MINI-POWER CONNECTOR / Conn Housing F 10 POS 2.54mm Crimp ST Cable Mount Mini Mate® Bulk
Datasheet
IPD1-05-D-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series Mini Mate IPD1
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 10
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color White
Features Polarizing Key
Note Contacts Not Included
Win Source Part Number 776859-IPD1-05-D-K
Popularity Medium
Supply and Demand Status Limited
Family Name IPD1
Introduction Date November 24, 2009
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian IPD1-05-D-K CAD Model

Description

The Samtec Inc. Mini Mate IPD1 series connector is a receptacle connector manufactured by Samtec Inc.

  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Contact Type: Female Socket
  • Rows: 2
  • Row Spacing: 0.100" (2.54mm)
  • Fastening Type: Latch Lock
  • Mounting: Free Hanging (In-Line)
  • Packaging: Bulk
  • Family Name: IPD1
  • Categories: Connectors, Interconnects
  • Alternative Parts: 1053082210, IPD1-05-D
  • Introduction Date: November 24, 2009
  • Estimated EOL Date: 2027
  • ECCN: EAR99
  • Country of Origin: China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
  • Supply and Demand Status: Limited
