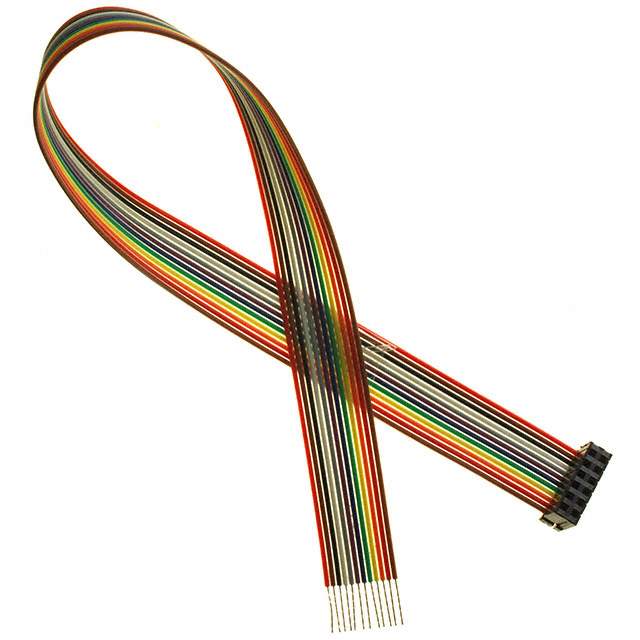

IDSD-06-S-12.00-ST3 Real Image
Same model may have multiple batches, images only for reference.

IDSD-06-S-12.00-ST3

Part No IDSD-06-S-12.00-ST3
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Description CONN SOCKET IDC DUAL
Datasheet
IDSD-06-S-12.00-ST3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Samtec Inc.
Status Active
Connector Type Socket to Cable
Number of Positions 12
Number of Rows 2
Pitch - Connector 0.100" (2.54mm)
Pitch - Cable 0.050" (1.27mm)
Length 1.00' (304.80mm)
Color Multiple, Ribbon
Cable Termination IDC
Contact Finish Gold
Win Source Part Number 1001385-IDSD-06-S-12.00-ST3
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IDSD-06-S-12.00-ST3 CAD Model

Description

The IDC Socket to Cable connector is a connector from Samtec Inc.

  • Positions: 12
  • Pitch: 0.100" (2.54mm)
  • Cable Pitch: 0.050" (1.27mm)
  • Length: 1.00' (304.80mm)
  • Contact Finish: Gold
  • Termination: IDC
