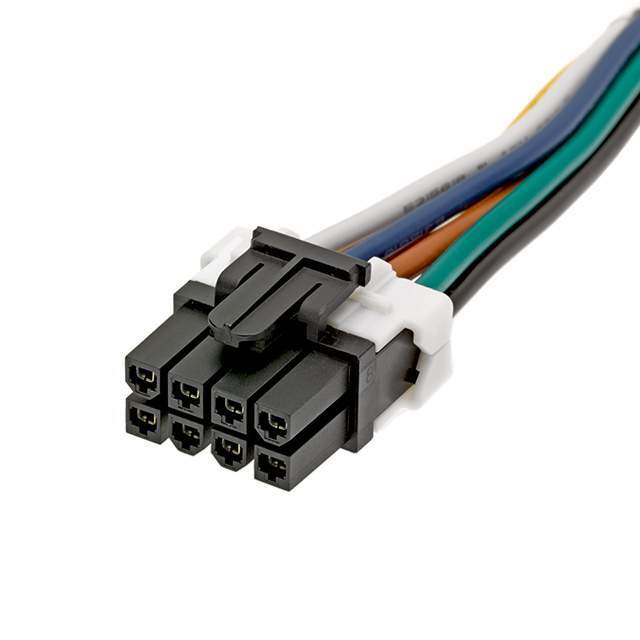

451350810 Molex, LLC
Same model may have multiple batches, images only for reference.

451350810

Part No 451350810
Manufacturer Molex, LLC
Catalog Rectangular Cable Assemblies
Description MINIFIT 8 CIRCUIT 1M / Cable Assembly UL 1007 1m 16AWG Power to Power 8 to 8 POS F-F Crimp-Crimp Mini-Fit TPA2 Bag
Datasheet
451350810 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Molex, LLC
Series Mini-Fit Jr 45135
Connector Type Socket to Socket
Number of Positions 8
Number of Rows 2
Pitch - Connector 0.165" (4.19mm)
Length 3.28' (1.00m)
Features Latch Lock
Color Multiple, Individual
Cable Termination Crimp
Contact Finish Tin
Contact Finish Thickness 35μin (0.90μm)
Win Source Part Number 770915-451350810
Popularity Medium
Supply and Demand Status Limited
Family Name 45135
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 451350810 CAD Model

Description

The Mini-Fit Jr 45135 series electronic component from Molex, LLC is a socket to socket connector with 8 individual positions available in multiple colors.

  • Positions: 8
  • Lock Feature: Latch lock
  • Rows: 2
  • Termination: Crimp cable
  • Contact Finish: Tin
  • Contact Finish Thickness: 35μin (0.90μm)
  • Pitch: 0.165" (4.19mm)
  • Shielding: Not applicable
  • Series: 45135
  • Category: Cable assemblies
  • Introduction Date: January 01, 2000
  • Estimated EOL Date: 2027
  • Halogen-Free: No
  • Popularity: Medium
  • Supply and Demand Status: Limited
