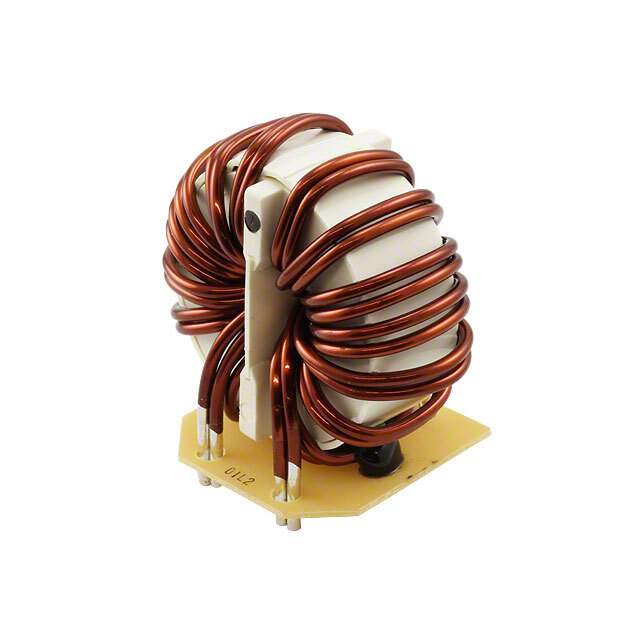

SCR-070-1R0A030J Real Image
Same model may have multiple batches, images only for reference.

SCR-070-1R0A030J

Part No SCR-070-1R0A030J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 10 kHz
Current Rating (Max) 7A
DC Resistance (DCR) (Max) 23mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.142" L x 0.906" W (29.00mm x 23.00mm)
Height (Max) 1.142" (29.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number SCR-070
Other Names UAL71R0A030J00,399-20194
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1276890-SCR-070-1R0A030J
Ultra Librarian 3D Model Ultra Librarian SCR-070-1R0A030J CAD Model

Description

The KEMET SCR-070-1R0A030J is a common mode choke designed for use in power line filters.

  • Manufacturer: KEMET
  • Product Name: SCR-070-1R0A030J
  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 7A
  • Height: 1.142 inches
  • Width: 0.906 inches
  • Lines: Two
  • Inductance: 3mH @ 10kHz
  • DC Resistance (DCR): 23mOhm
  • Mounting: Through-hole
  • Package: Horizontal, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • Series: SCR
