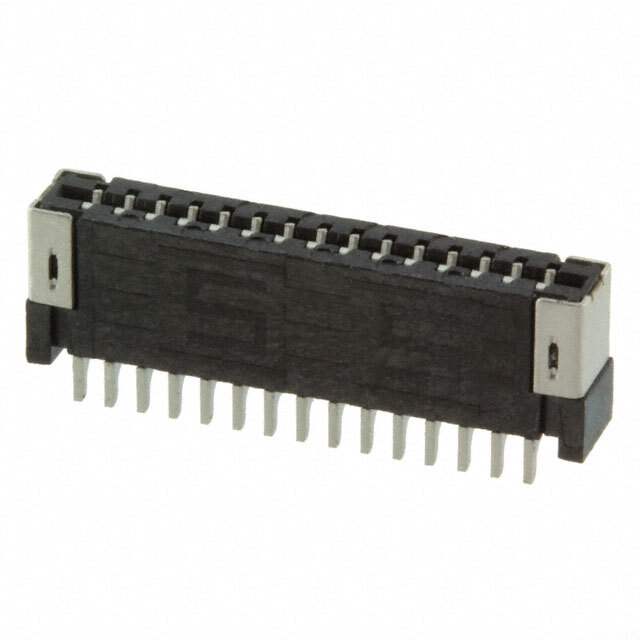

FC1-15-02-T-WT Real Image
Same model may have multiple batches, images only for reference.

FC1-15-02-T-WT

Part No FC1-15-02-T-WT
Manufacturer Samtec Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC 15POS 1.00MM R/A
Datasheet
FC1-15-02-T-WT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Packaging Tube/Rail
Status Active
Flat Flex Type FFC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 15
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Temperature Range - Operating -55°C to 105°C
Current Rating 2A per Contact
Housing Color Black
Mating Cycles 25
Win Source Part Number 204058-FC1-15-02-T-WT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FC1-15-02-T-WT CAD Model

Description

Description:

The FC1-15-02-T-WT is a robust connector solution designed for flexibility in numerous electronic applications. With a user-friendly interface, it facilitates quick and reliable electrical connections.

Features and Benefits:

  • Durable construction with excellent mechanical strength.
  • Simple, secure installation reducing assembly time.
  • High conductivity ensuring consistent performance.

Applications/Projects:

  • Data communication devices.
  • Networking equipment.
  • Renewable energy systems.
  • Automated control systems.

Additional Details:

This connector is ergonomically designed for ease of use while maintaining top-tier performance standards in both industrial and commercial settings.
