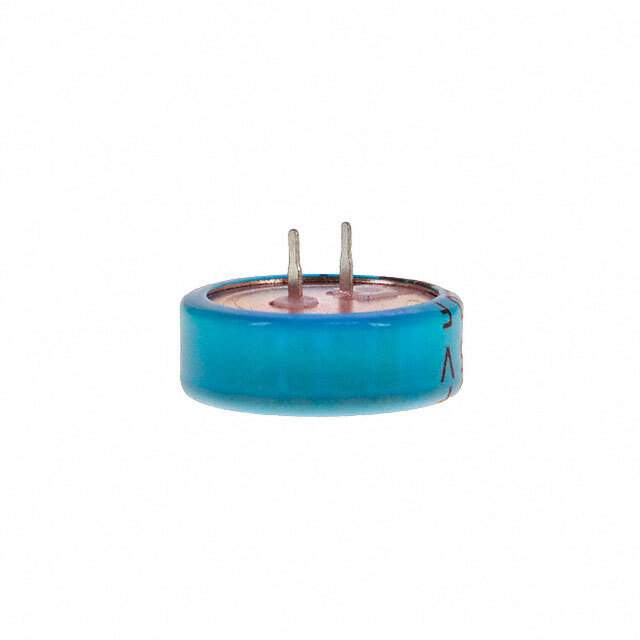

Same model may have multiple batches, images only for reference.

EDC105Z5R5C

Name: EDC105Z5R5C
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1342283
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EDC105Z5R5C
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Electric Double Layer Capacitors, Supercaps
Description	CAP 1F -20% +80% 5.5V T/H / 1 F (EDLC) Supercapacitor 5.5 V Radial, Can 30Ohm @ 1kHz 1000 Hrs @ 70°C
Datasheet	EDC105Z5R5C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	EDC
Package	Tray
Capacitance	1 F
Tolerance	-20%, +80%
Voltage - Rated	5.5 V
ESR (Equivalent Series Resistance)	30Ohm @ 1kHz
Lifetime @ Temp.	1000 Hrs @ 70°C
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.846" Dia (21.50mm)
Height - Seated (Max)	0.295" (7.50mm)
Temperature Range - Operating	-25°C ~ 70°C
Standard Package	350
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.29.0040
California Prop 65	Warning Information
Win Source Part Number	1342283-EDC105Z5R5C
Ultra Librarian 3D Model	Ultra Librarian EDC105Z5R5C CAD Model

Description

The Cornell Dubilier Electronics (CDE) EDC105Z5R5C is an electric double-layer capacitor (EDLC), also known as a supercapacitor.

Manufacturer: Cornell Dubilier Electronics (CDE)
Capacitance: 1F
Voltage Rating: 5.5V
Tolerance: -20%, +80%
ESR (equivalent series resistance): 30Ohm @ 1kHz
Package: Tray
Standard Package: 350
Size/Dimension: 0.846" Diameter (21.50mm) x 0.295" Height (7.50mm)
Package/Case: Radial, Can
Temperature Range: -25°C to 70°C
