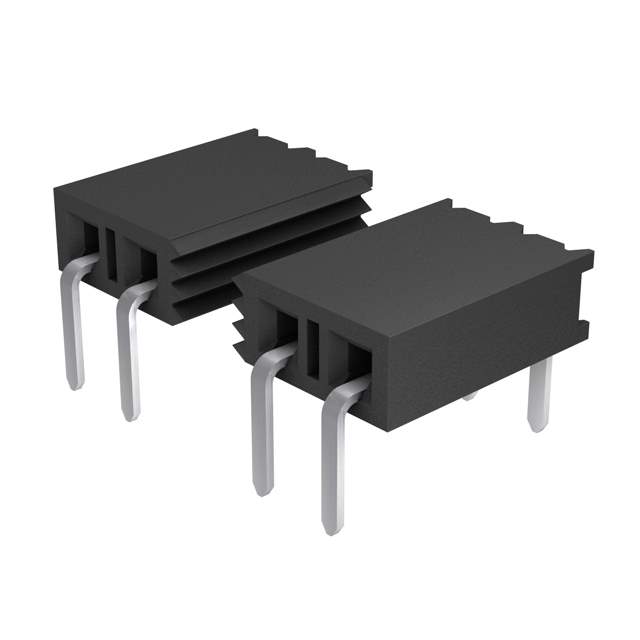

BCS-124-L-S-HE

Part No BCS-124-L-S-HE
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 24POS 0.1 GOLD PCB R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Samtec Inc.
Packaging Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 24
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Style Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0μin (0.25μm)
Insulation Color Black
Insulation Height 0.110" (2.79mm)
Contact Length - Post 0.125" (3.18mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.6A per Contact
Voltage Rating 475VAC
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811412-BCS-124-L-S-HE
Ultra Librarian 3D Model Ultra Librarian BCS-124-L-S-HE CAD Model

Description

The Samtec Inc. electronic component with Win Source Part Number 811412-BCS-124-L-S-HE is a female socket type connector with a right angle, through-hole mounting style.

  • Positions: 24
  • Positions Loaded: All
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 475VAC
  • Flammability Rating: UL94 V-0
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Contact Finish-Post: Tin
  • Contact Length-Post: 0.125" (3.18mm)
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Contact Shape: Square
  • Temperature Range: -55°C ~ 125°C
  • Market Popularity: Medium
