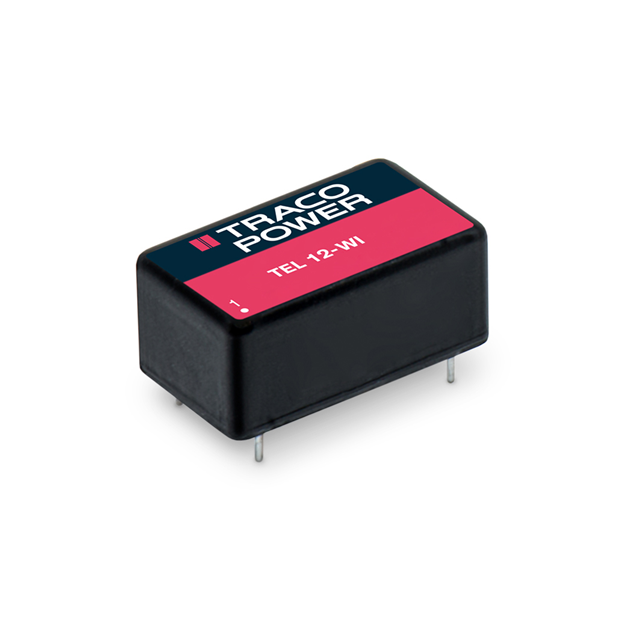

TEL 12-4815WI Real Image
Same model may have multiple batches, images only for reference.

TEL 12-4815WI

Part No TEL 12-4815WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description 12 WATT DC/DC CONVERTER, INDUSTR / Isolated Module DC DC Converter 1 Output 24V 500mA 18V - 75V Input
Datasheet
TEL 12-4815WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEL 12WI (12W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 24V
Current - Output (Max) 500mA
Power (Watts) 12 W
Voltage - Isolation 1.8 kV
Applications ITE (Commercial)
Features Baseplate
Temperature Range - Operating -40°C ~ 85°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 16-DIP Module, 5 Leads
Dimension 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm)
Approval Agency CB, cURus
Base Product Number TEL 12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-TEL12-4815WI,TEL12-4815WI
Standard Package 10
Win Source Part Number 1057012-TEL 12-4815WI
Ultra Librarian 3D Model Ultra Librarian TEL 12-4815WI CAD Model

Description

The Traco Power TEL 12WI (12W) is an isolated module DC-DC converter.

  • Power Output: 12 W
  • Feature: Baseplate
  • Mounting Type: Through-hole
  • Package: 16-DIP module with 5 leads
  • Applications: ITE (Commercial)
  • Standard Package: 10
  • Efficiency: 88%
  • Voltage Isolation: 1.8 kV
  • Output: One
  • Maximum Output Current: 500mA
  • Input Voltage Range: 18V to 75V
  • Output Voltage: 24V
  • Dimensions: 0.94" L x 0.54" W x 0.40" H (23.8mm x 13.7mm x 10.2mm)
