Same model may have multiple batches, images only for reference.

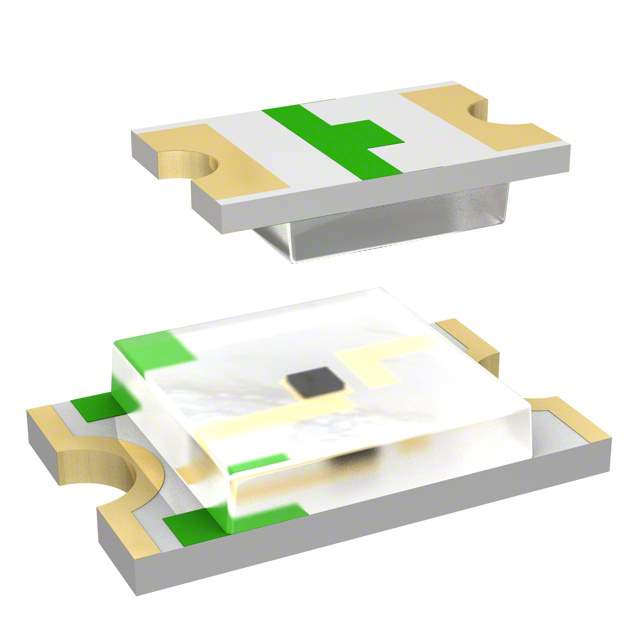

APHCM2012SURCK-F01 Real Image
Same model may have multiple batches, images only for reference.

APHCM2012SURCK-F01

Part No APHCM2012SURCK-F01
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description 2.0x1.25mm SMD CHIP LED LAMP | LED RED CLEAR CHIP SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Kingbright
Packaging Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 80mcd
Lens Style Rectangle with Flat Top
Lens Size 1.30mm x 1.25mm
Voltage - Forward (Vf) 1.95V
Current - Test 20mA
Viewing Angle 110°
Mounting Style SMD
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Manufacturer Package 0805
Supplier Device Package Chip LED
Parts Dimension 2.00mm L x 1.25mm W
Height (Maximum) 0.40mm
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1146330-APHCM2012SURCK-F01
Manufacturer Homepage www.us.kingbright.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian APHCM2012SURCK-F01 CAD Model

Description

The Kingbright APHCM2012SURCK-F01 is a chip LED designed for use in electronic circuits.

  • Lens Style: Rectangular with Flat Top
  • Lens Size: 1.30mm x 1.25mm
  • Light Color: Red
  • Wavelength (Dominant): 630nm
  • Wavelength (Peak): 645nm
  • Forward Voltage: 1.95V
  • Millicandela Rating: 80mcd
  • Mounting: Reel
  • Popularity: Medium
  • Manufacturer: Kingbright
