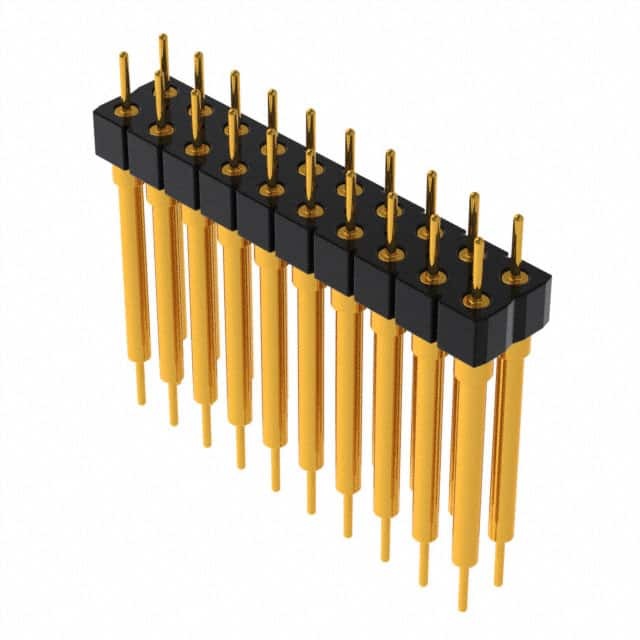

BBD-110-G-C
Same model may have multiple batches, images only for reference.

BBD-110-G-C

Part No BBD-110-G-C
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Datasheet
BBD-110-G-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series BBD
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.125" (3.18mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.835" (21.21mm)
Insulation Height 0.585" (14.86mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Nickel
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Contact Finish Thickness - Post 50.0µin (1.27µm)
Base Product Number BBD-110
Standard Package 22 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 912895-BBD-110-G-C
Ultra Librarian 3D Model Ultra Librarian BBD-110-G-C CAD Model

Description

The 912895-BBD-110-G-C is a rectangular connector header manufactured by Samtec Inc.

  • Series: BBD series
  • Positions: 20
  • Fastening Type: Push-Pull
  • Mounting Type: Through-Hole
  • Rows: Two
  • Pitch: 0.100 inches (2.54mm)
  • Contact Finish (Mating): Gold with a thickness of 20.0µin (0.51µm)
  • Contact Finish (Post): Nickel with a thickness of 50.0µin (1.27µm)
  • Insulation Material: Polyester, Glass Filled
  • Insulation Color: Black
  • Application: Board to Board connections
  • Operating Temperature: -55°C to 125°C
