Same model may have multiple batches, images only for reference.

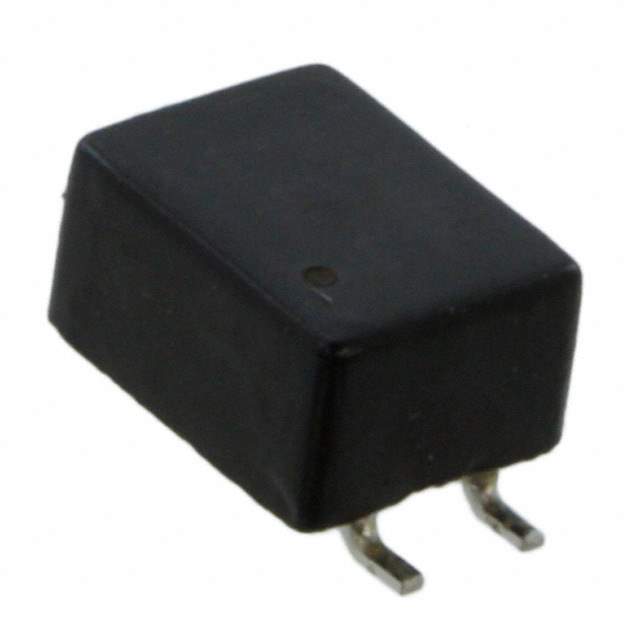

DR331-253AE Real Image
Same model may have multiple batches, images only for reference.

DR331-253AE

Part No DR331-253AE
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 25UH 500MA 2LN SMD
Datasheet
DR331-253AE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 35 Weeks
Features 2 Line Common Mode Choke Surface Mount 500mA DCR 200mOhm
Manufacturer Bourns Inc.
Series DR331
Package Reel - TR
Operating Temperature Range -40°C ~ 135°C
Mounting Surface Mount
Package Horizontal, 4 Flat Lead
Family Name DR331
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number DR331-253AETR, DR331-253AE-ND, DR331-253AECT, DR331-253AEDKR, DR331253AE
Quantity per package 1500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869261-DR331-253AE
Ultra Librarian 3D Model Ultra Librarian DR331-253AE CAD Model

Description

The Bourns Inc. DR331-253AE is a 2 line common mode choke surface mount with a maximum current rating of 500mA and a DCR of 200mOhm.

  • Manufacturer: Bourns Inc.
  • Product Name: DR331-253AE
  • Type: Common Mode Choke
  • Number of Lines: 2
  • Mounting Type: Surface Mount
  • Maximum Current Rating: 500mA
  • DCR: 200mOhm
  • Category: Filters
  • Series: DR331
  • Supply and Demand Status: Limited
  • Quantity per Package: 1500 pieces
  • Estimated Production Lead Time: 35 weeks
  • REACH: Unaffected
  • ECCN: EAR99
  • Package: Horizontal, 4 Flat Lead
  • MSL Level: 1 (unlimited)
