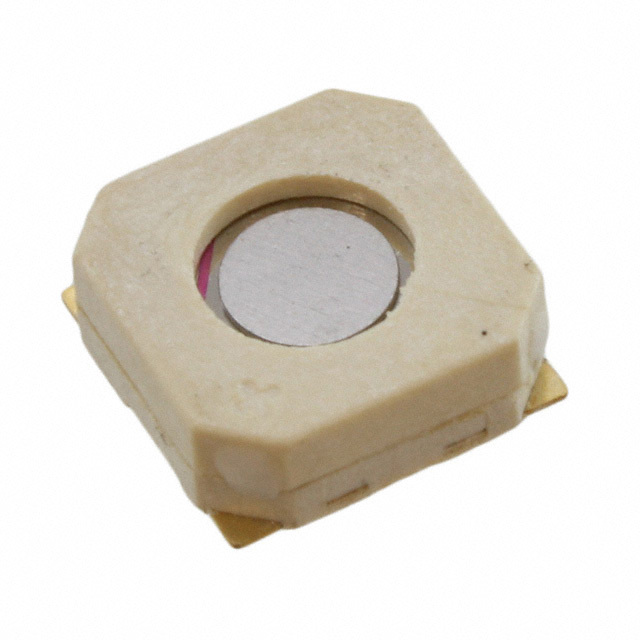

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Technology Magnetic
Type Low Profile
Frequency Range 850 Hz ~ 9 kHz
Frequency - Self Resonant 850Hz
Impedance 8 Ohms
Efficiency - dBA 82.00
Efficiency - Testing 500mW/500mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 500 mW
Power - Max 1 W
Port Location Top
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Termination Solder Pads
Size / Dimension 0.787" Dia (20.00mm)
Height - Seated (Max) 0.150\
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1547177-CLS0201MA
Ultra Librarian 3D Model Ultra Librarian CLS0201MA CAD Model
