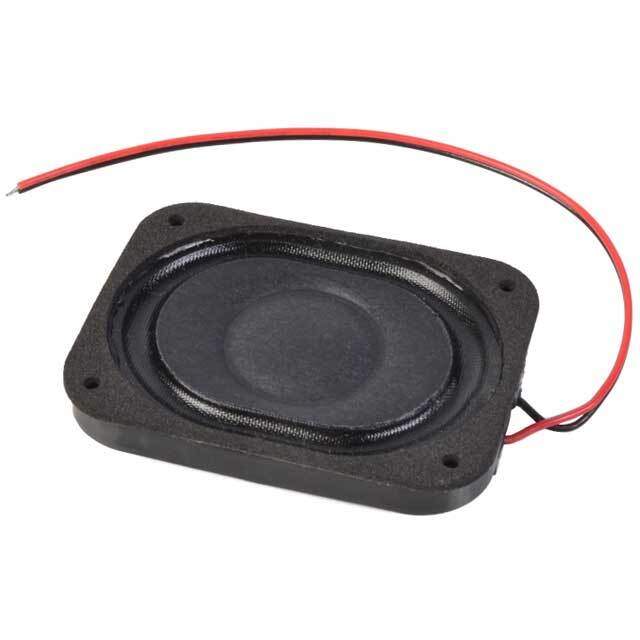

CDS-40304-L100 Real Image
Same model may have multiple batches, images only for reference.

CDS-40304-L100

Part No CDS-40304-L100
Manufacturer CUI Inc.
Catalog Speakers
Description SPEAKER 4OHM 2W TOP PORT 79DB / 4 Ohms General Purpose Speaker 2 W 320 Hz ~ 20 kHz Top Rectangular
Datasheet
CDS-40304-L100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Speakers
Mfr CUI Devices
Series CDS
Package Tray
Technology Magnetic
Type General Purpose
Frequency Range 320 Hz ~ 20 kHz
Frequency - Self Resonant 400Hz
Impedance 4 Ohms
Efficiency - dBA 79.00
Efficiency - Testing 1W/1M
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 2 W
Power - Max 3 W
Port Location Top
Shape Rectangular
Material - Cone Paper/Cloth
Material - Magnet Nd-Fe-B
Termination Wire Leads
Size / Dimension 1.575" L x 1.181" W (40.00mm x 30.00mm)
Height - Seated (Max) 0.280" (7.10mm)
Base Product Number CDS-40304
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8518.21.0000
Win Source Part Number 1337736-CDS-40304-L100
Ultra Librarian 3D Model Ultra Librarian CDS-40304-L100 CAD Model

Description

The CDS-40304-L100 is a magnetic general purpose speaker from CUI Devices. The manufacturer is CUI Devices, and the product is CDS-40304-L100.

  • Termination: Wire Leads
  • Package: Tray
  • Shape: Rectangular
  • Port Location: Top
  • Frequency Range: 320 Hz to 20 kHz
  • Self-Resonant Frequency: 400 Hz
  • Rated Power: 2 W
  • Maximum Power: 3 W
  • Impedance: 4 Ohms
  • Efficiency: 79.00 dBA
  • Cone Material: Paper/cloth
  • Magnet Material: Nd-Fe-B
  • Length: 1.575 inches
  • Width: 1.181 inches
  • Height Seated: 0.280 inches
  • Ideal for: Audio Products
  • Standard Package: 25
