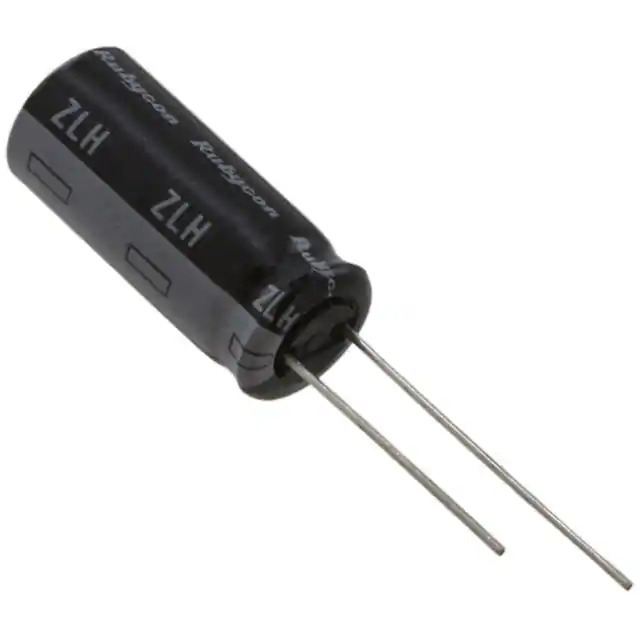

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 775.5 mA @ 120 Hz
Impedance 69 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358056-63ZLH330MEFCT810X23
Ultra Librarian 3D Model Ultra Librarian 63ZLH330MEFCT810X23 CAD Model

Description

The Rubycon 1358056-63ZLH330MEFCT810X23 capacitor is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 330 µF
  • Voltage Rating: 63 V
  • Polarization: Polar
  • Tolerance: ±20%
  • Package: Radial, Can
  • Size: 0.394" diameter
  • Height: 0.984"
  • Lead Spacing: 0.197"
  • Mounting: Through Hole
  • Lifetime: 10000 hours @ a temperature of 105°C
  • Ripple Current @ Low Frequency: 775.5 mA @ 120 Hz
