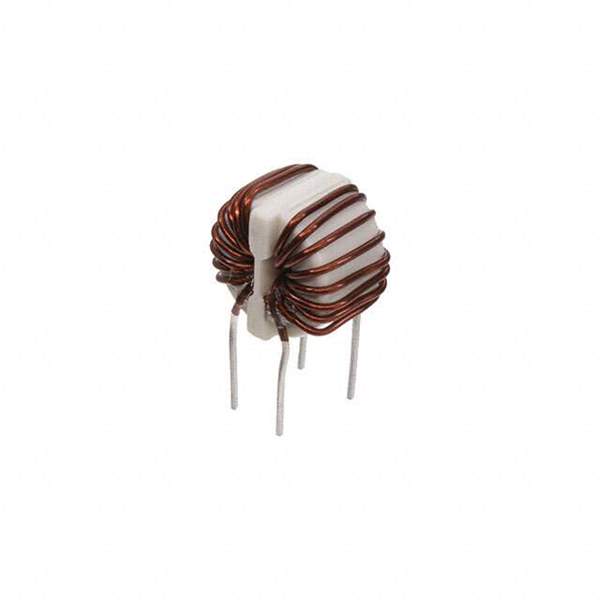

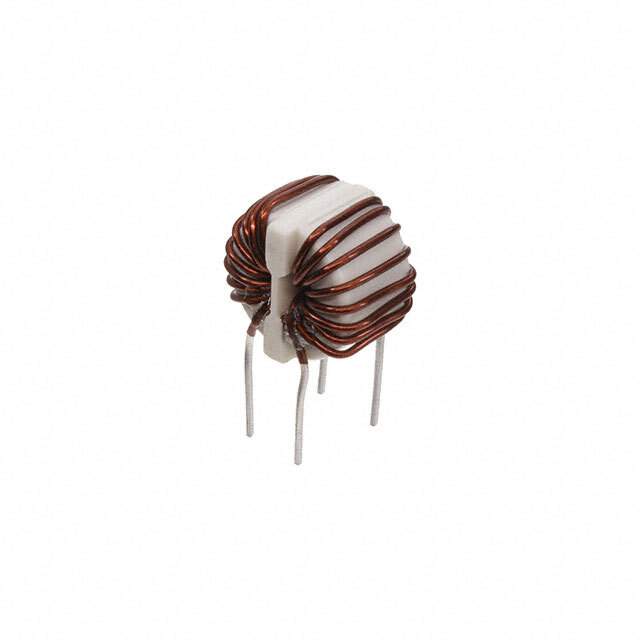

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 150mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.689" L x 0.551" W (17.50mm x 14.00mm)
Height (Max) 0.669" (17.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-01
Other Names 399-SC-01-E50G,UALSC01E50G000
Standard Package 1,300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276958-SC-01-E50G
Ultra Librarian 3D Model Ultra Librarian SC-01-E50G CAD Model

Description

The Kemet SC-01-E50G is a common mode choke with a voltage rating of 250V and a current rating of 1A.

  • Voltage Rating: 250V
  • Current Rating: 1A
  • Filter Type: Power line
  • Number of Lines: 2
  • Inductance @ Frequency: 5 mH @ 1 kHz
  • DC Resistance (DCR): 150mOhm
  • Dimensions: 0.689" L x 0.551" W (17.50mm x 14.00mm)
  • Height: 0.669" (17.00mm)
  • Package: Through-hole
  • Package/Case: Vertical, no base, 4 PC Pin
  • Operating Temperature Range: 25°C to 120°C
  • Application: Power line filtering
