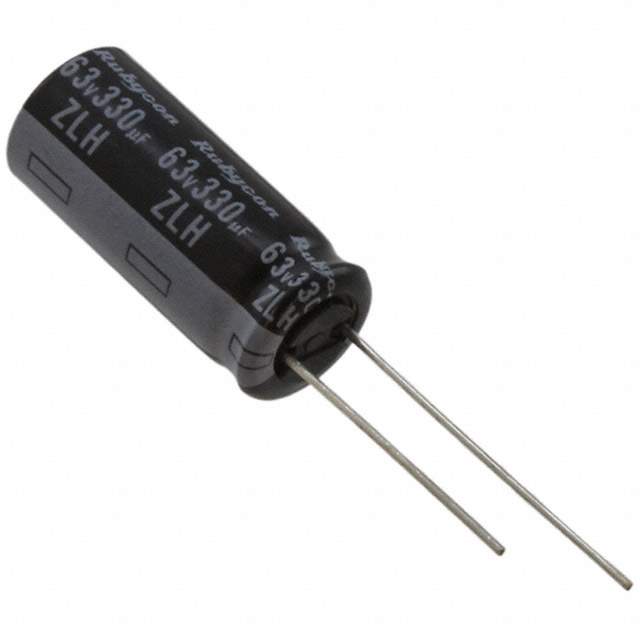

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 775.5 mA @ 120 Hz
Ripple Current @ High Frequency 1.41 A @ 100 kHz
Impedance 69 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 63ZLH330MEFC10X23-ND,1189-1766
Standard Package 1,000
Win Source Part Number 1330500-63ZLH330MEFC10X23
Ultra Librarian 3D Model Ultra Librarian 63ZLH330MEFC10X23 CAD Model

Description

The Rubycon 63ZLH330MEFC10X23 is an aluminum electrolytic capacitor with a capacitance of 330 uF and a voltage rating of 63V.

  • Manufacturer: Rubycon
  • Capacitance: 330 uF
  • Voltage Rating: 63V
  • Family: Capacitors
  • Application: General Purpose
  • Lifetime: 10,000 hours @ 105°C
  • Case/Package: Radial Can
  • Mounting Style: Through-Hole
