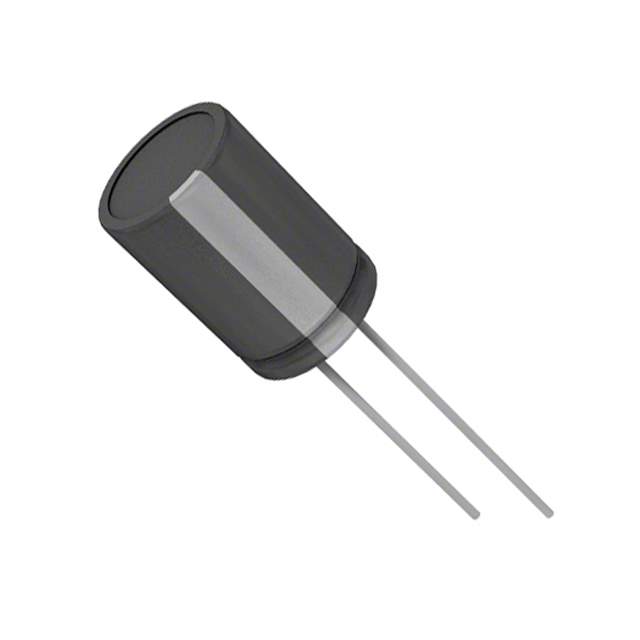

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Tape & Box (TB)
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 147 mA @ 120 Hz
Ripple Current @ High Frequency 210 mA @ 100 kHz
Impedance 630 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 2,000
Win Source Part Number 961145-63YXF47MEFCT78X11.5
Ultra Librarian 3D Model Ultra Librarian 63YXF47MEFCT78X11.5 CAD Model

Description

The YXF47MEFCT78X11.5 from Rubycon is an aluminum electrolytic capacitor that is suitable for general-purpose applications.

  • Capacitance: 47 µF
  • Voltage Rating: 63 V
  • Series: YXF
  • Tolerance: ±20%
  • Lead Spacing: 0.138" (3.50mm)
  • Ripple Current @ Low Frequency: 147 mA @ 120 Hz
  • Ripple Current @ High Frequency: 210 mA @ 100 kHz
  • Height: 0.512" (13.00mm)
  • RoHS Compliant: Yes
