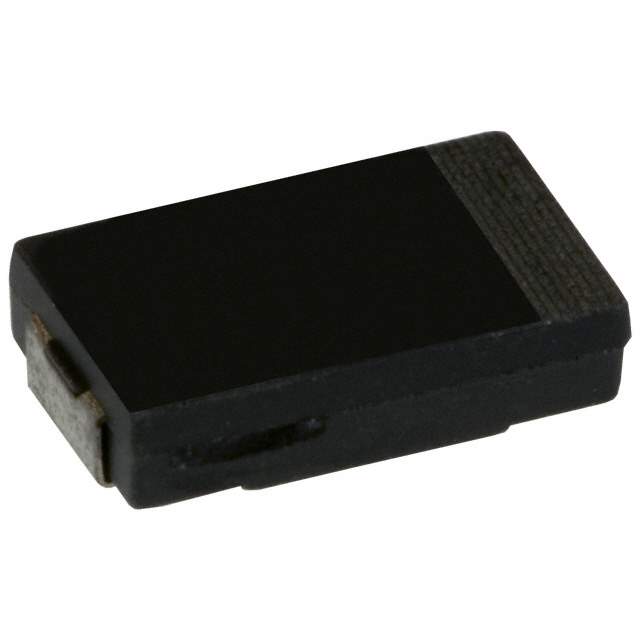

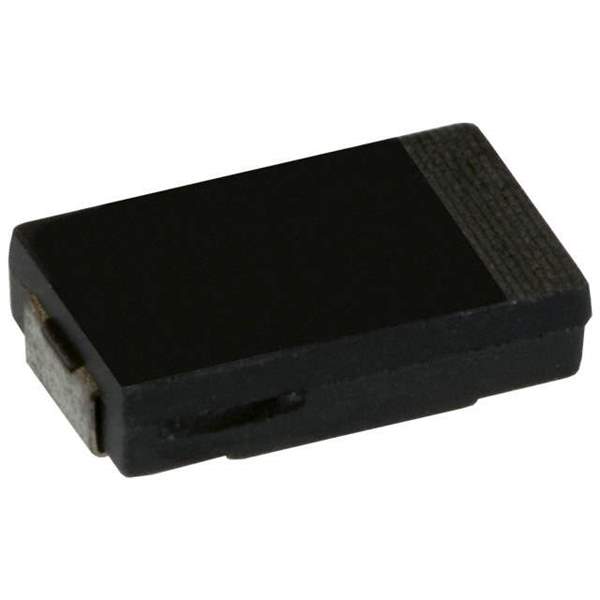

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Capacitance 100 µF
Mounting SMD (SMT)
Case / Package 2917
Case Code (Imperial) 2917
Case / Package 7343
Contact Plating Tin
Depth 4.3 mm
Dissipation Factor 0.06 %
ESR (Equivalent Series Resistance) 18 mΩ
Height 1.8 mm
Height - Seated (Max) 1.905 mm
Leakage Current 25 µA
Length 7.3 mm
Life (Hours) 1000 hours
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 2.5 A
Ripple Current (AC) 2.5 A
RoHS Compliant
Termination SMD/SMT
Tolerance 20 %
Voltage Rating 2.5 V
Voltage Rating (DC) 2.5 V
Width 4.3 mm
Win Source Part Number 1056872-EEFCD0E101ER
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EEFCD0E101ER CAD Model

Description

The Panasonic 964386 is an aluminum capacitor with a capacitance of 100 µF and a voltage rating of 2.5 V.

  • Capacitance: 100 µF
  • Voltage Rating: 2.5 V
  • Tolerance: 20%
  • Leakage Current: 25 µA
  • ESR (Equivalent Series Resistance): 18 mΩ
  • Ripple Current: 2.5 A
  • Packaging: Cut Tape
  • Length: 7.3 mm
  • Height: 1.8 mm
  • Contact Plating: Tin
  • Dissipation Factor: 0.06%
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 105 °C
  • Suitable for: Various electronic applications that require high capacitance and low ESR
