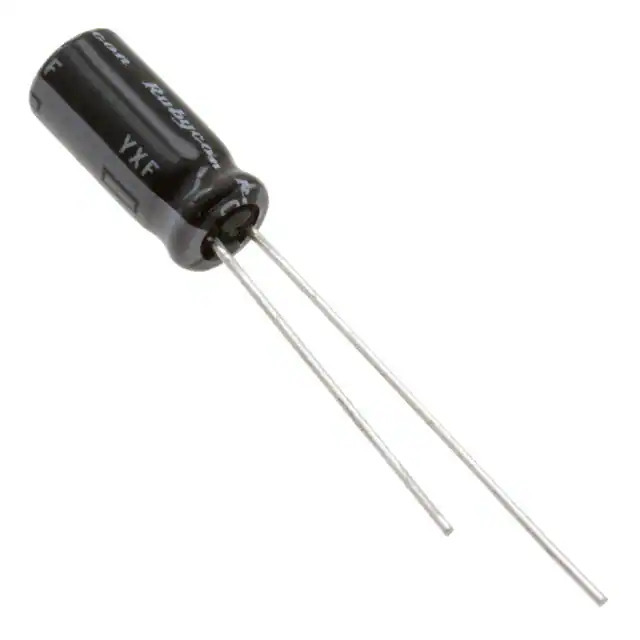

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Product Status Active
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 12.6 mA @ 120 Hz
Ripple Current @ High Frequency 30 mA @ 100 kHz
Impedance 4 Ohms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357732-50YXF1MEFC5X11
Ultra Librarian 3D Model Ultra Librarian 50YXF1MEFC5X11 CAD Model

Description

The Rubycon YXF series is a bulk aluminum electrolytic capacitor with a capacitance of 1 µF and a voltage rating of 50 V.

  • Capacitance: 1 µF
  • Voltage - Rated: 50 V
  • Temperature Range: -40°C ~ 105°C
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 12.6 mA @ 120 Hz
  • Ripple Current @ High Frequency: 30 mA @ 100 kHz
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Polarization: Polar
  • Size / Dimension: 0.197" (5.00mm)
  • Height - Seated (Max): 0.492" (12.50mm)
  • Application: General Purpose
  • Mounting Type: Through Hole
  • Series: YXF
  • Product Status: Active
  • REACH Status: Unaffected
