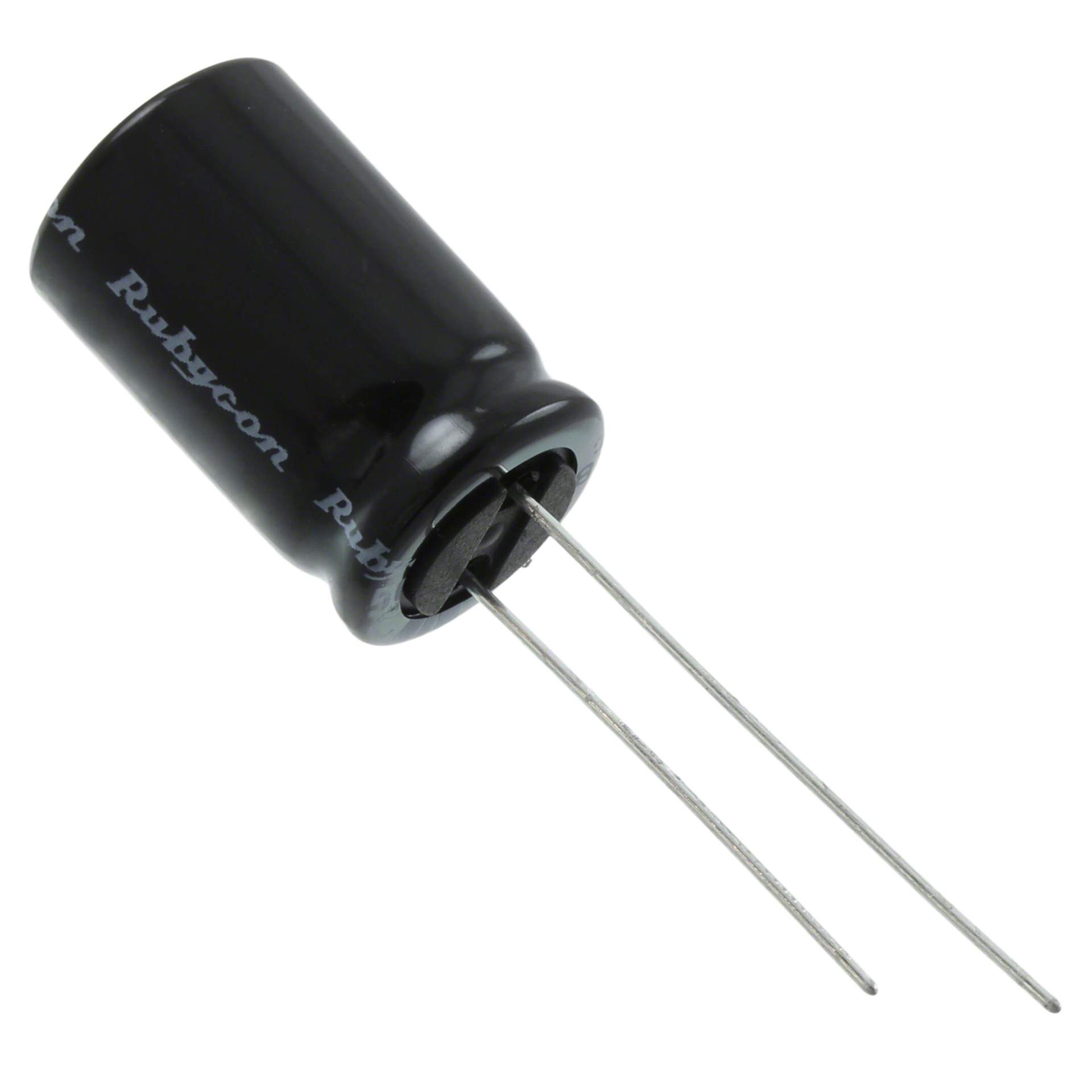

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series YK
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 22μF
Tolerance ±20%
Voltage Rating 50V
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 95mA @ 120Hz
Ripple Current - High Frequency 142.5mA @ 10kHz
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Maximum) 0.492" (12.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 766474-50YK22MEFCT15X11
Popularity Medium
Supply and Demand Status Limited
Family Name YK
Introduction Date September 12, 2002
ECCN EAR99
Country of Origin Indonesia, Japan
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 50YK22MEFCT15X11 CAD Model

Description

The Rubycon YK series capacitor is an ideal choice for general applications manufactured by Rubycon.

  • Capacitance: 22μF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Lead Spacing: 0.079" (2.00mm)
  • Polarized: Yes
  • Package: Radial, Can
  • Ripple Current: 95mA @ 120Hz, 142.5mA @ 10kHz
  • Height: 0.492" (12.50mm)
  • Diameter: 0.197" (5.00mm)
  • Lifetime: 2000 Hrs @ 85°C
  • ESR: -
  • Status: Obsolete
  • Production: No longer in production
  • Alternative Parts: EEUEB1H220H, ECA1HMH220I, MAL214271229E3
  • Supply/Demand Status: Limited
  • Manufacturing Locations: Indonesia, Japan
