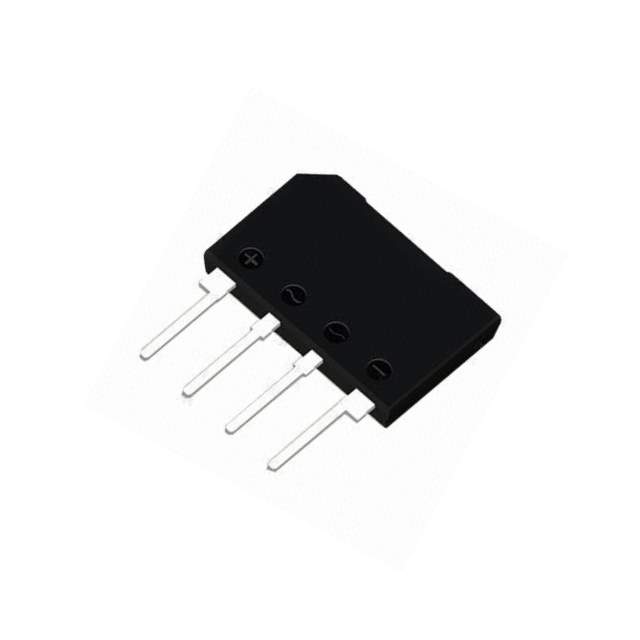

MP3510W

Part No MP3510W
Manufacturer Rectron USA
Catalog Bridge Rectifiers
Description BRIDGE RECT GLASS 1000V 35A MP35  /  Bridge Rectifier Single Phase Standard 1 kV Through Hole MP-25W
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Rectron USA
Package Tray
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 35 A
Voltage - Forward (Vf) (Max) @ If 1.05 V @ 17.5 A
Current - Reverse Leakage @ Vr 500 nA @ 1000 V
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case 4-Square, MP-25W
Supplier Device Package MP-25W
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 2516-MP3510W
Standard Package 500
Win Source Part Number 1192559-MP3510W
Ultra Librarian 3D Model Ultra Librarian MP3510W CAD Model

Description

The Rectron USA MP3510W is a single-phase bridge rectifier diode.

  • Current Rating: 35A
  • Peak Reverse Voltage: 1kV
  • Mounting Type: Through-hole
  • Operating Temperature Range: -55°C to 175°C
  • ECCN: EAR99
  • Standard Package: 500
  • Alternative Parts: MP3510-W
