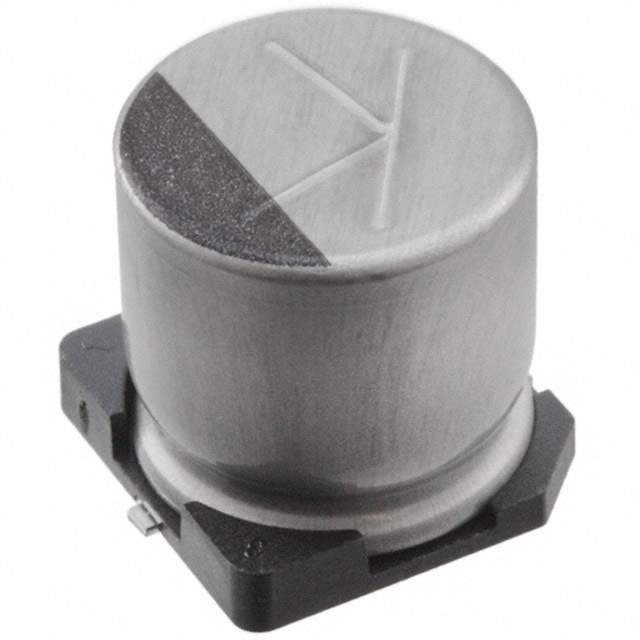

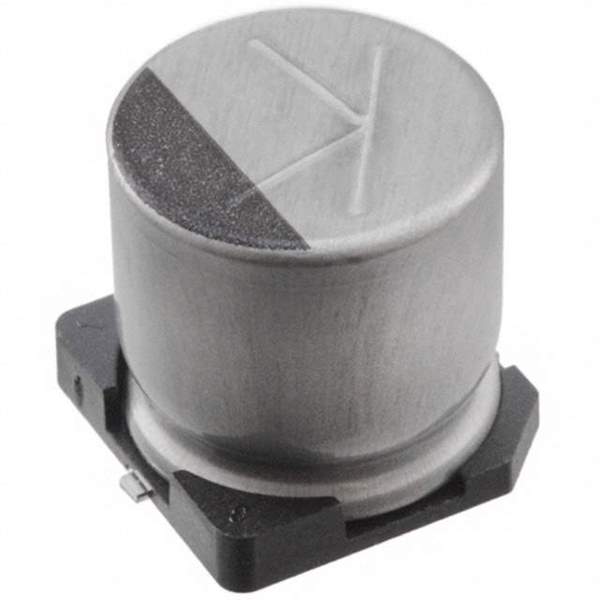

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 402 mA @ 120 Hz
Ripple Current @ High Frequency 670 mA @ 100 kHz
Impedance 180 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 1189-1654-2,1189-1654-1,50TZV220M10X105,1189-1654-6
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307294-50TZV220M10X10.5
Ultra Librarian 3D Model Ultra Librarian 50TZV220M10X10.5 CAD Model

Description

The Rubycon 1307294-50TZV220M10X10.5 is an Aluminum Electrolytic Capacitor from the TZV series designed for automotive applications.

  • Capacitance: 220 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Impedance: 180 mOhms
  • Lifetime: 2000 hours @ 105°C
  • Mounting: Surface mountable
  • Package: Radial, can - SMD
  • Standard Package: 500
  • Dimensions: 0.394" Dia (10.00mm)
  • Operating Temperature Range: -55°C to 105°C
