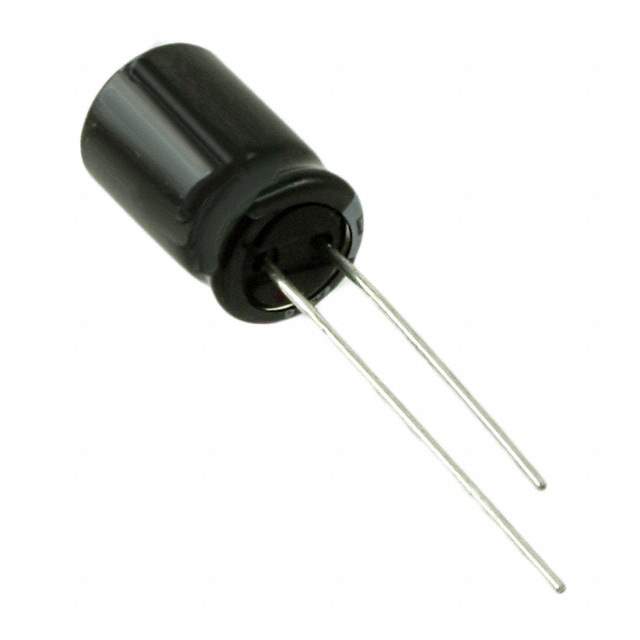

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 47 mA @ 120 Hz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1400
Standard Package 3,000
Win Source Part Number 1331361-50PX10MEFC5X11
Ultra Librarian 3D Model Ultra Librarian 50PX10MEFC5X11 CAD Model

Description

The Rubycon 1331361-50PX10MEFC5X11 is an aluminum electrolytic capacitor that has a capacitance of 10μF and is rated for 50V.

  • Tolerance: ±20%
  • Ripple Current: 47mA @ 120Hz
  • Polarization: Polarized
  • Package: Radial, Can
  • Height: 0.492" (12.50mm)
  • Diameter: 0.197" (5.00mm)
  • Application: General-Purpose
  • Lifetime: 1000 hours @ 105℃
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
