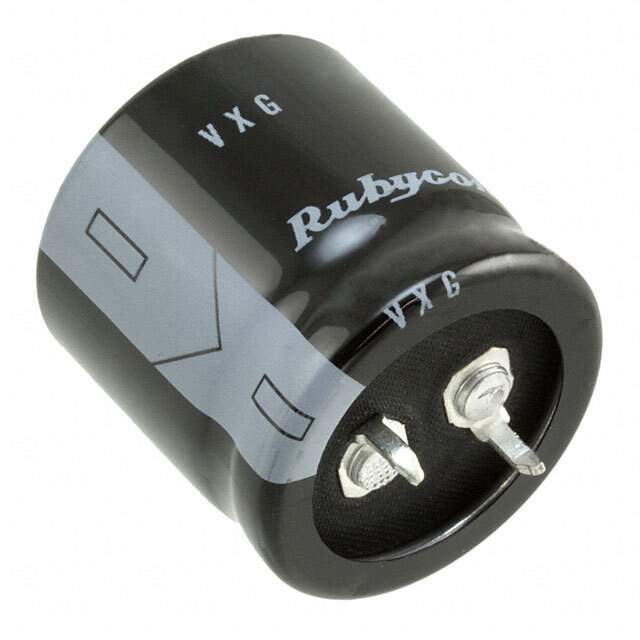

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series VXG
Package Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 860 mA @ 120 Hz
Ripple Current @ High Frequency 1.204 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Standard Package 200
Win Source Part Number 1163975-450VXG100MEFCSN25X25
Ultra Librarian 3D Model Ultra Librarian 450VXG100MEFCSN25X25 CAD Model

Description

The Rubycon VXG series capacitor is a radial, can type capacitor with a capacitance of 100 µF and a voltage rating of 450 V.

  • Series: VXG
  • Type: Radial, Can
  • Capacitance: 100 µF
  • Voltage Rating: 450 V
  • Tolerance: ±20%
  • ESR: Not Applicable
  • Ripple Current (Low Frequency): 860 mA @ 120 Hz
  • Ripple Current (High Frequency): 1.204 A @ 10 kHz
  • Polarization: Polar
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.394" (10.00mm)
  • Height: 1.063" (27.00mm) When Seated
  • Diameter: 0.984" (25.00mm)
  • Application: General Purpose
  • Lifetime: 5000 Hours @ 105℃
