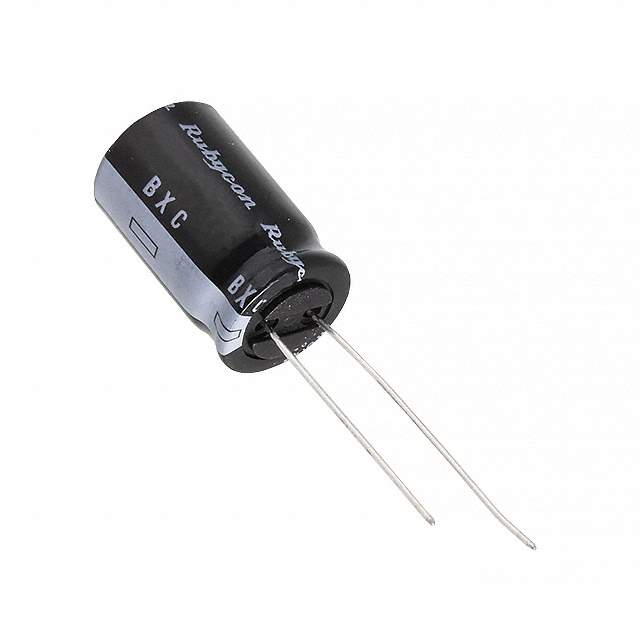

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXC
Package Bulk
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 135 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1163015-450BXC10MEFC12.5X20
Ultra Librarian 3D Model Ultra Librarian 450BXC10MEFC12.5X20 CAD Model

Description

The Rubycon 1163015-450BXC10MEFC12.5X20 is an aluminum electrolytic capacitor with a capacitance of 10 µF and a voltage rating of 450 V.

  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Ripple Current (Low Frequency): 135 mA @ 120 Hz
  • Ripple Current (High Frequency): 450 mA @ 100 kHz
  • Height: 0.866" (22.00mm) when seated
  • Diameter: 0.492" (12.50mm)
  • Lifetime: 12000 Hrs @ 105°C
  • Operating Temperature Range: -25°C ~ 105°C
  • Application: general-purpose
  • Package: radial, can package
  • ECCN: EAR99
  • ROHS3 Compliant: yes
