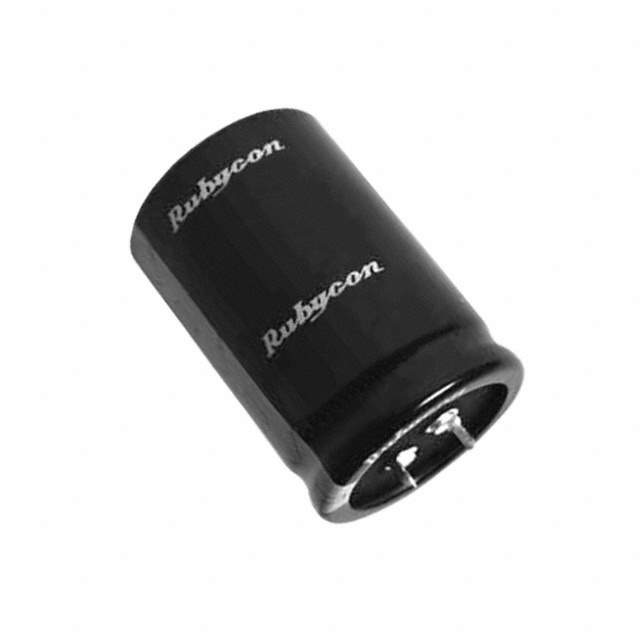

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXK
Package Tray
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 420 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.18 A @ 120 Hz
Ripple Current @ High Frequency 3.052 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1338059-420MXK470MEFCSN25X50
Ultra Librarian 3D Model Ultra Librarian 420MXK470MEFCSN25X50 CAD Model

Description

The Rubycon 1338059-420MXK470MEFCSN25X50 capacitor is an aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 470 µF
  • Voltage Rating: 420 V
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • ESR: Not Specified
  • Polarization: Polarized
  • Package: Radial, Can - Snap-In
  • Height (Max): 2.047" (52.00mm)
  • Diameter: 0.984" (25.00mm)
  • Operating Temperature: -25°C ~ 105°C
  • Lifetime: 3000 Hrs @ 105°C
  • Ripple Current: 2.18 A @ 120 Hz and 3.052 A @ 10 kHz
